ELCO Lighting EL560RICA 17W Max 5 Inch IC Airtight Shallow Remodel Housing for LED Inserts

2 sold in last 8 hours

EL560RICA

$12.53
$12.53
customers are viewing this product

ELCO Lighting EL560RICA

EL560RICA Product Description


ELCO Lighting 5 Inch Dedicated LED IC Airtight Remodel Housing

FEATURES :

Shallow single wall IC remodel construction, for use in insulated ceilings.
CA Title 24 compliant (as high efficiency luminaire).
Trims sold separately.
Lamp: 17W Max 120V.
UL Listed for damp location and for feed through.
Compatible with ELCO 5" LED Inserts.

SPECIFICATIONS :

Wattage : 17W
Voltage : 120V
Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air- tight requirements.
Steel housing for greater heat dissipation.

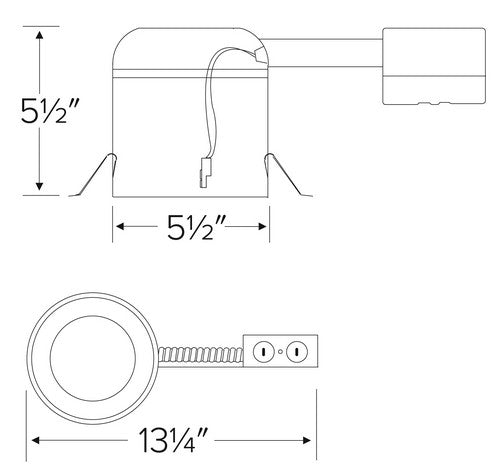

Installation: Designed for ceiling plenums where 2x8 joists or taller joists are used. Maximum hole cutout is 5 1/2". See installation sheet for detailed information.

Electrical:
Input Voltage: 120V AC.
Inherently protected.

Dimmability:
Dimmability based on lamp.

Lamp: Designed for use with ELCO 5" LED inserts, LED modules, or PSA37 with 5" MR16 trims.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp for Title 24 Compliance.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
