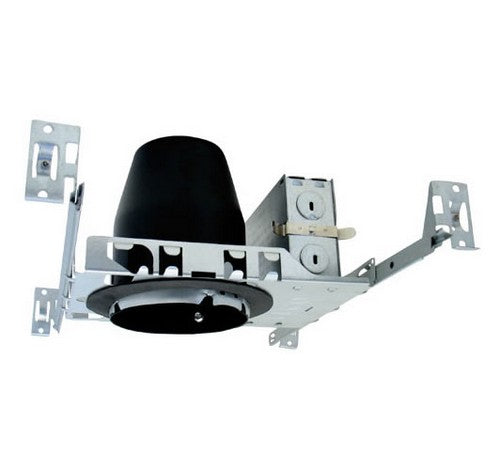

ELCO Lighting EL49LDICA 12W 4" New Construction Housing

2 sold in last 8 hours

EL49LDICA

$15.33
$15.33
customers are viewing this product

Elco Lighting EL49LDICA

EL49LDICA Product Description

4" new construction housing featuring a twist and lock socket for use with 120V GU10 MR16 LED lamps.

FEATURES :

Single wall IC construction, for use in insulated ceilings.
Flicker Free LED Dimming.
Lamp: 120V, MR16 GU10 LED (not included).
Lamp Holder: Twist-and-lock GU10 MR16 lampholder.
Trims sold separately.

SPECIFICATIONS :

Wattage : 12W
Voltage : 120V or 277V
Lamp Type : GU10
Wet Location : Listed with Shower Trims
Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:
Input Voltage: 120V AC.
EL49LDICA-7 includes 277V to 120V step-down transformer.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 4" MR16 trims.

Dimmability:
Dimmability based on lamp.

Lamp: Designed for use with GU10 MR16 LED lamps.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
