ELCO Lighting EL492RICA

EL492RICA Product Description

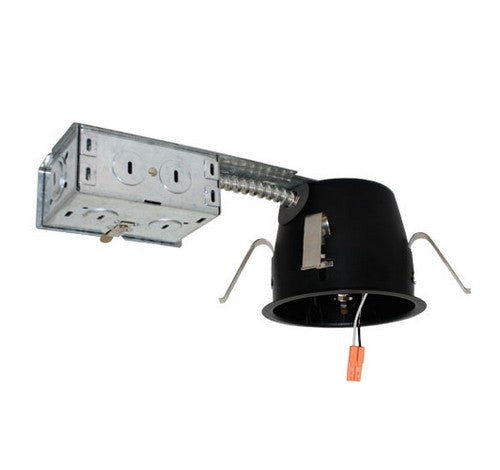

The 4” Elco Shallow Dedicated LED New Construction housings are high quality UL listed as IC Airtight unit ideal for use in insulated ceilings. Airtight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation and combustive materials, Elco IC housings are easy and quick to install. These housings can be installed in residential wood structures or commercial building drop ceilings.

FEATURES :

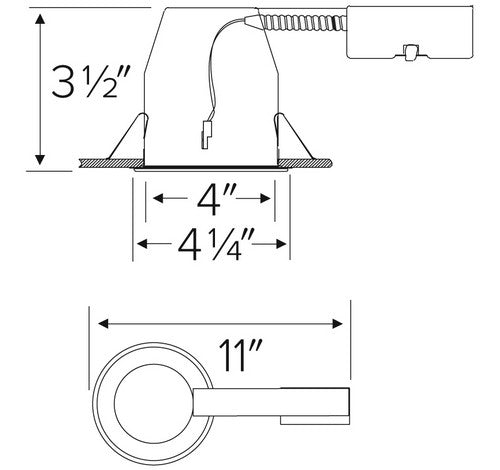

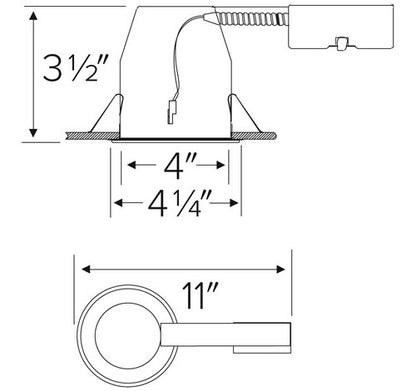

Measures 4.25 inches wide, 3.5 inches tall, extends 11 inches
Damp rated
Uses 1 14w LED bulb(s) (not included)
Title 24 Compliant
ENERGY STAR Certified

SPECIFICATIONS :

Wattage 14W
Voltage 120V or 277V
Wet Location Listed with Shower Trims
Damp Location Listed

Single wall IC construction, for use in insulated ceilings.
3 1/2” height allows for use in 2 x 6 construction.
Adjustable housing accommodates up to 1 1/4” ceiling thickness.
Housing meets restricted air flow requirement (per ASTM E-283).

Lamp: 14W Max 120V

Lamp Holder: 2-wire quick connect terminal connector.

Mounting: Captive bar hangers span 24” and can be repositioned 90º. Housing accommodates various ceiling thickness.

Junction Box: Pre-wired junction box provided with 1/2" and 3/4" knockouts. Maximum (8) No. 12 AWG branch circuit conductors (4 in, 4 out). Junction box provided with removable access plates.

Mounting Frame: Stamped galvanized steel construction for corrosion resistance

Labels: U.L. listed for damp locations
U.L. listed for feed through
U.L. listed for direct contact with insulation
CA Title 24 compliant
Trims sold separately.
EL490ICA-7 includes 277V-120V step-down transformer

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
