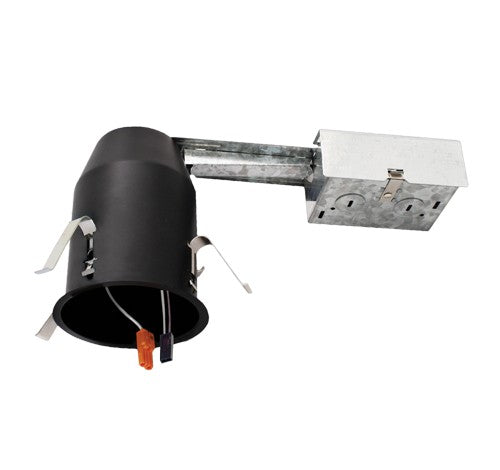

ELCO Lighting EL490RICA-7 14W 4 Inch Remodel Dedicated LED Housing 120V
ELCO Lighting EL490RICA-7
EL490RICA-7 Product DescriptionSingle wall IC airtight remodel, for use in insulated ceilings.
Meets Title 24 requirements. ENERGY STAR® Certified.
Trims and inserts sold separately, MR16 LED with PSA37 or 4" Insert.
Wattage : 14W
Voltage : 120V
Wet Location : Listed with wet location trims
Damp Location : Listed
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.

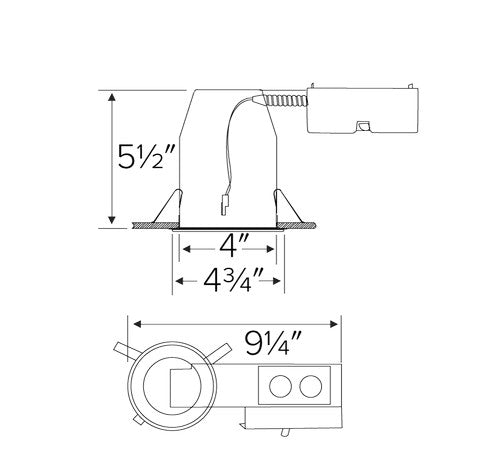

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Input Voltage: 120V AC.
Dimmability: Dimmability based on lamp.
Lamp: Designed for use with ELCO 4" LED inserts, LED modules, or PSA37 with 4" MR16 trims.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
Labels And Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
