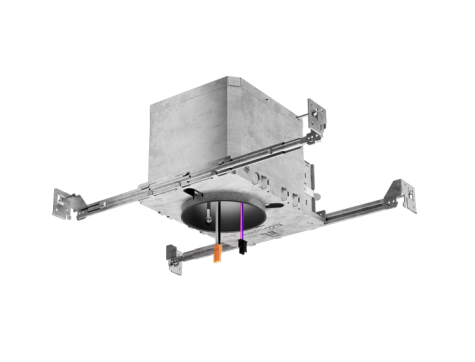

Elco Lighting EL485ICDXA-EM7 4" 0-10V Max. Adjustability New Construction IC Airtight Housing, 120/277V, 0-10V/Triac/ELV, Emergency Battery Backup

ELCO Lighting EL485ICDXA-EM7

EL485ICDXA-EM7 Product Description

Elco Lighting EL485ICDXA-EM7 4" 0-10V Max. Adjustability New Construction IC Airtight Housing, 120/277V, 0-10V/Triac/ELV, Emergency Battery Backup.

FEATURES :

Wired for 0-10V Dimming
120/277V Input
Integrated collar allows for use with ⅝" thick to 1½" thick ceilings
Double Wall IC Airtight for direct contact with Insulation
Meets restricted air flow requirements (per ASTM E-283)
UL Listed for direct contact with Insulation
UL Listed for Damp Locations
UL Listed for Wet Location with Wet Location Rated Inserts
UL Listed for Feed Through
CA Title 24 Compliant

Specifications:

Voltage 120/277V
Dimmable 0-10V/Triac/ELV.

Construction:
• IC rated for direct contact with insulation, for use in IC or Non-IC conditions.
• Housing adjusts in frame to accommodate up to 1½" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Emergency battery  backup

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength swivel hanger bars can easily be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed swivel hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical: Input Voltage: 120277V

Dimmability: Dimmability based on lamp.

Lamp: Designed for use with ELCO 4" Pex™ Twist-On Trims and 0-10V Koto™ LED module
