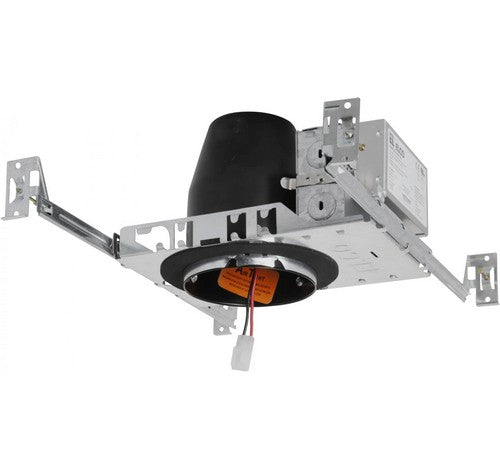

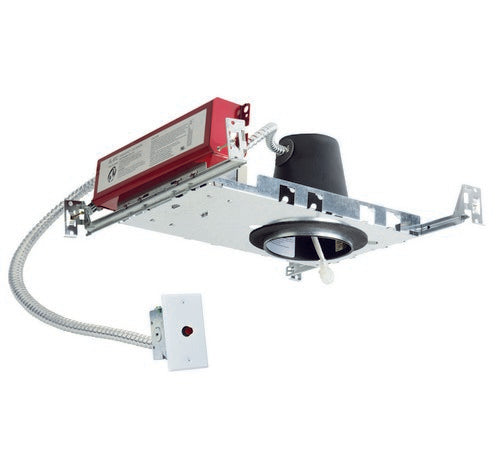

ELCO Lighting EL4811ICA 13.7W 4" Recessed Housing for Commercial Construction E.L.L. Module 1100lm

2 sold in last 8 hours
ELCO Lighting
EL4811ICA
$42.17
$42.17
customers are viewing this product

ELCO Lighting EL4811ICA

EL4811ICA Product Description

24W MAX.
2-Hour Fire Rated housing
120/277V, 60Hz
For use in insulated ceilings
Meets Title 24 High Efficacy requirements
Housing Meets Restricted Air Flow requirements (per ASTM E-283)
UL Listed for damp locations
UL Listed for wet locations

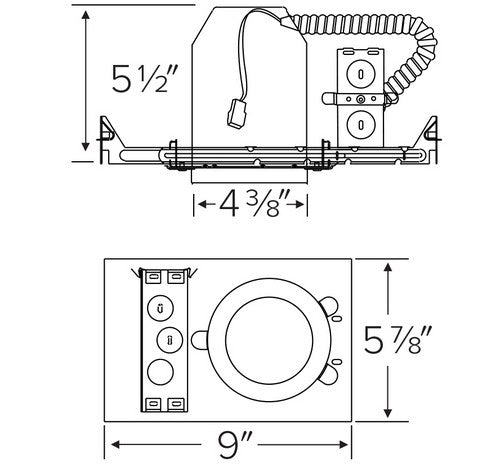

Heigh: 6 3/16″

SPECIFICATIONS :

Wattage : 11.8W - 13.7W
Lumens : 850 lm - 1100 lm
Voltage : 120/277V or 120V
Dimmable : Triac/ELV/0-10V or Triac/ELV
Lamp Type : LED

Construction:
Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. 850 or 1100 lumens.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 1% with compatible dimmer and Lutron Driver.
Can be specified with Lutron drivers for specific applications.
For full list of dimmers refer to the Dimmer Compatibility List.

Labels and Listings:
UL Listed for Wet Location with select module/trims.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
