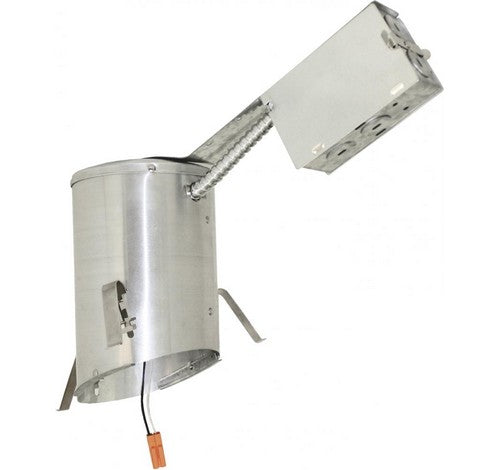

ELCO Lighting EL470RICA 14W 4" LED IC Airtight Sloped Ceiling Remodel Housing

2 sold in last 8 hours
ELCO Lighting
EL470RICA
$25.43
$25.43
customers are viewing this product

ELCO Lighting EL470RICA

EL470RICA Product Description

ELCO Slant allows for installation in sloped ceilings ranging from 2/12 (10°) to 6/12 (26.5°). Can be used in insulated ceilings. Fits in 2" x 8" joist construction.

FEATURES :

Allows for direct contact with insulation.
Designed for use in 2/12 to 6/12 sloped ceiling.
California Title 24 (JA8-2016-E).

SPECIFICATIONS :

Wattage : 14W
Voltage : 120V
Damp Location : Listed

Construction:
IC Rated for Direct Contact with Insulation.
Designed for use in 2/12 to 6/12 sloped ceiling.

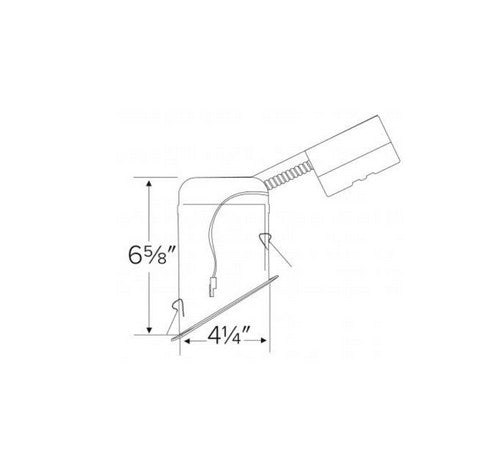

Housing adjusts to accommodate up to 3/4” ceiling thickness.
Aluminum housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. Template for hole cutout is provided with each housing. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and One 3/4” knockout. Four true pry-out knockout slots for easy Romex installation.

Electrical: Connection is rated for 120V input.

Compatible Housings: EL470ICA, EL470RICA.

Warranty: ELCO Products are built to last. 5-year Limited warranty.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
AirTight Per ASTM E-283.
California Title 24 (JA8-2016-E).

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
