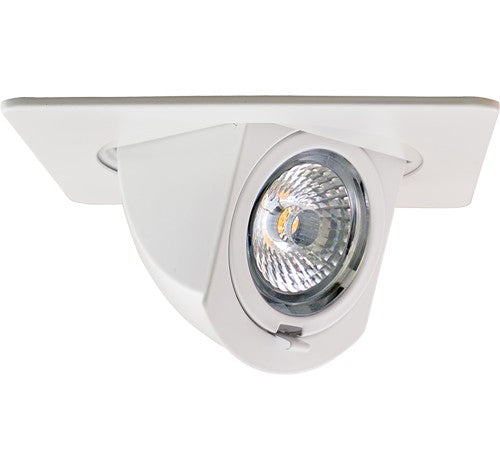

ELCO Lighting EL44727DXW 12.6W 4 Inch 0-10V Square Adjustable LED Insert White Finish 2700K
2
sold in last
8
hours
EL44727DXW
$125.93
customers are viewing this product
PRODUCT DESCRIPTION
ELCO Lighting EL44727DXW
EL44727DXW Product Description
The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.FEATURES :
0-10V/Triac/ELV Dimmable120/277V Driver
Interchangeable lens available for multiple beam angles. 36° Standard, 20° (EP710C)
and 60° (EP712C) optional

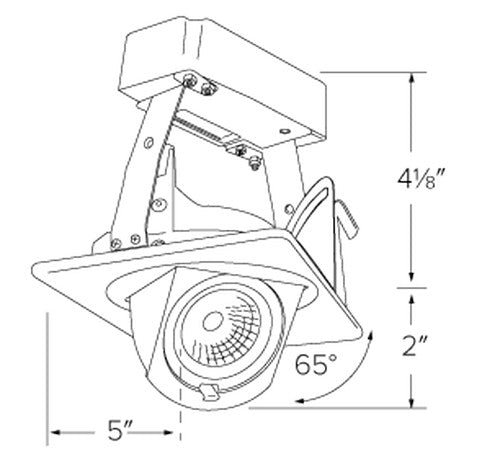

Adjustability of 65° tilt and 356° rotation
93+ CRI for extremely accurate color rendering
CA Title 24, UL listed, ENERGY STAR, JA8-2016-E
Life span of 50,000 hours L70
Compatible with EL490 Family (not for use in shallow housings)
SPECIFICATIONS :
Wattage : 12.6WLumens : 850 lm - 900 lm
Voltage : 120/277V
Color Temp. : 2700K - 3000K
Dimmable : Triac/ELV/0-10V
Beam Angle : 36°
CRI : 93+
Damp Location : Listed
Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.
Construction: For use in IC and non-IC housings. Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

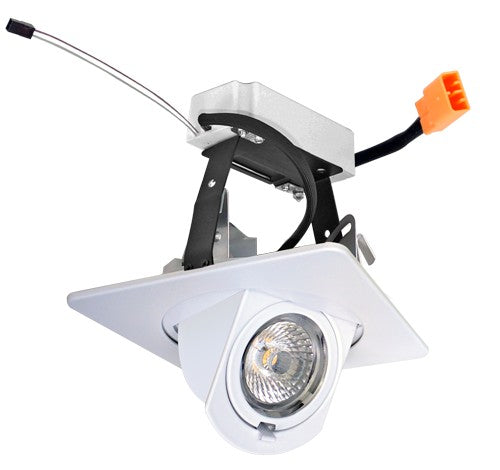

Installation: Quick connect for use with EL49FICDXA, EL49FICDXA-B, EL490ICDXA, EL490ICDXA-B and EL490RICDXA.
Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9. Ambient operating temperature -40°F (-40°C) to 104°F (40°C). Input wattage of 12.6W. Start time of less than .75 seconds.
LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness.
No LED pixelation.
Dimmability: Works with Triac/ELV/ 0-10V dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.
Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
Labels and Listings:
UL Listed for Damp Location.
RoHS Compliant.
ENERGY STAR® Certified.
California Title 24 JA8-2016-E.
About Elco Lighting
Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.Have Questions?Ask a BuyRite Electric Expert
