ELCO Lighting EL39LDICA 12W 3 Inch New Construction Housing
2 sold in last 8 hours
customers are viewing this product
Elco Lighting EL39LDICA

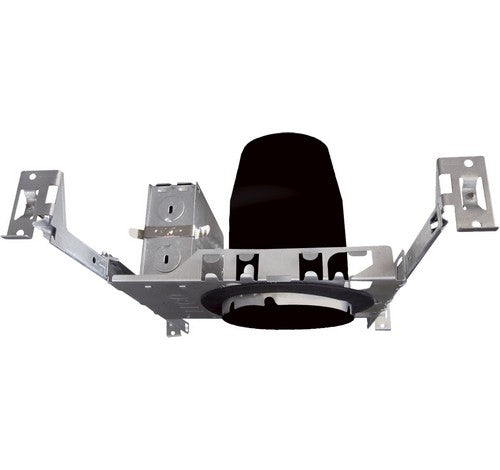

EL39LDICA Product Description3" new construction housing featuring a twist and lock socket for use with 120V GU10 MR16 LED lamps.
FEATURES :Single wall IC construction, for use in insulated ceilings.
Flicker Free LED Dimming.
Lamp: 120V, MR16 GU-10 LED (not included).
Lamp Holder: Twist-and-lock GU10 MR16 lampholder.
Trims sold separately
SPECIFICATIONS :Wattage : 12W
Voltage : 120V or 277V
Lamp Type : GU10
Wet Location : Listed with Shower Trims
Damp Location : Listed
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

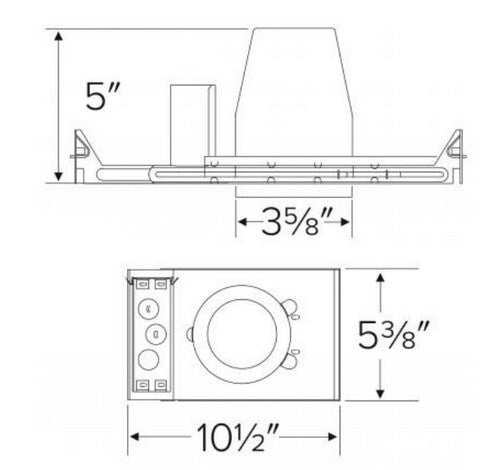

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 3 5/8". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Input Voltage: 120V AC.
EL39LDICA-7 includes 277V to 120V step-down transformer.
Thermally protected against improper lamping.
Trims: Compatible with ELCO 3" MR16 trims.
Lamp: Designed for use with GU10 MR16 LED lamps.
Dimmability: Dimmability based on lamp.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
