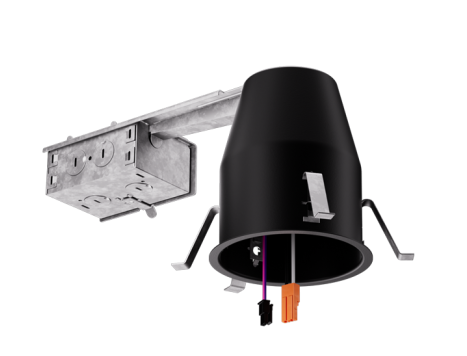

Elco Lighting EL390RICDXA 3" 0-10V Remodel Dedicated LED IC Airtight Housing, 120/277V, 0-10V/Triac/ELV
ELCO Lighting EL390RICDXA
EL390RICDXA Product Description
3" Remodel LED Housing compatible with 0-10V LED Koto™ Module.FEATURES :
Wired for 0-10V Dimming120/277V Input
IC Airtight for direct contact with insulation.
UL Listed for direct contact with Insulation
Specifications:
Voltage 120/277V
Dimmable 0-10V/Triac/ELV
Damp Location Listed
Construction:
• IC rated for direct contact with insulation, for use in IC or Non-IC conditions.
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Steel housing for greater heat dissipation. Stamped galvanized steel frame
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 3 5/8". Suitatble for T-grid and drop ceiling applications. See installation sheet for detailed information.
Electrical: Input Voltage: 120277V
Lamp: Designed for use with GU10 MR16 LED lamps.
Dimmability: Dimmability based on lamp.
