Elco Lighting EL390ICDXA 3" 0-10V New Construction Dedicated LED IC Airtight Housing, 120/277V, 0-10V/Triac/ELV

ELCO Lighting EL390ICDXA

EL390ICDXA Product Description

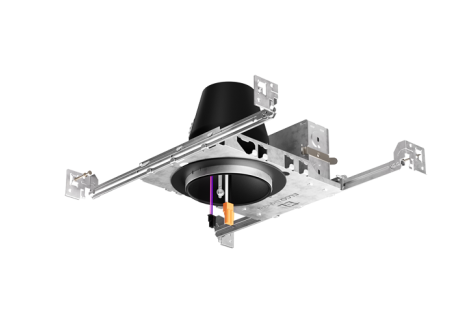

Elco Lighting 3" 0-10V New Construction Dedicated LED IC Airtight Housing, 120/277V, 0-10V/Triac/ELV

FEATURES :

Wired for 0-10V Dimming
120/277V Input
Single Wall IC Airtight Housing for use in insulated ceilings
UL Listed for direct contact with Insulation

Specifications:

Voltage 120/277V
Dimmable 0-10V/Triac/ELV
Damp Location Listed

Construction:
• Single Wall IC rated for direct contact with insulation, for use in IC or Non-IC conditions.
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Steel housing for greater heat dissipation. Stamped galvanized steel frame.

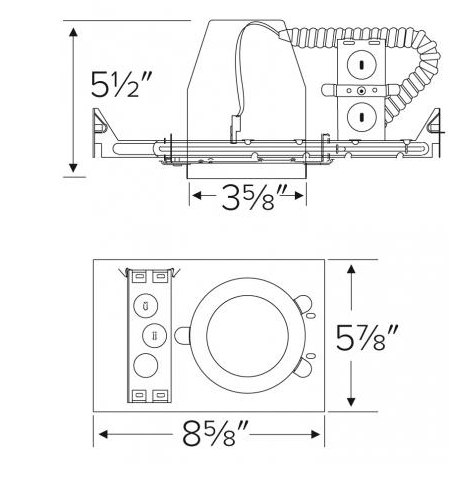

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 3 5/8". Suitatble for t-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical: Input Voltage: 120277V

Dimmability: Dimmability based on lamp
