ELCO Lighting EL2699S 50W 3" Low Voltage Shallow Housing Magenetic
2 sold in last 8 hours
customers are viewing this product

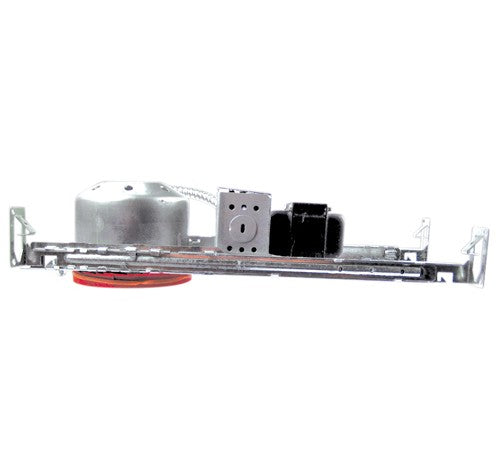

Elco Lighting EL2699S
EL2699S Product DescriptionLine voltage down lighting is a popular choice for lighting residential and commercial spaces because of its comforting light output and easy maintenance. Elco Lighting has a vast selection of line voltage housings and trims in a variety of aperture sizes.
FEATURES :3" Low Voltage Shallow Housing.
Versatile, reliable and easy to install.
Integral thermal protector guards against improper lamping.
Junction box listed for 90° supply wire.
SPECIFICATIONS :Wattage : 50W
Lamp Type : GU5.3 BiPin
Damp Location : Listed

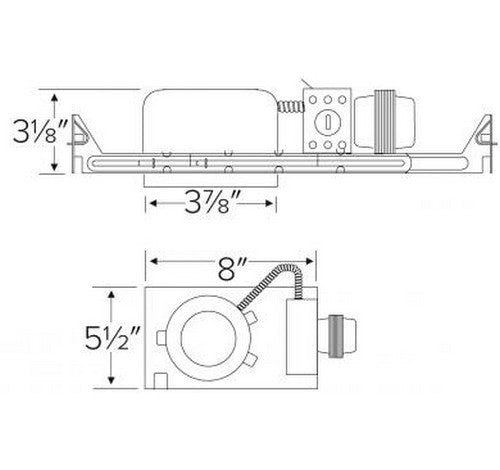

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 3 3/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit knockouts, 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.
Trims: Compatible with ELCO Low Voltage MR16 trims.
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a list of compatible dimmers.
Note: Lamp used may affect dimmability.
Lamp: Designed for use with GU5.3 MR16 lamps up to 50W.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
