Elco Lighting EL2699LDICA

EL2699LDICA Product Description

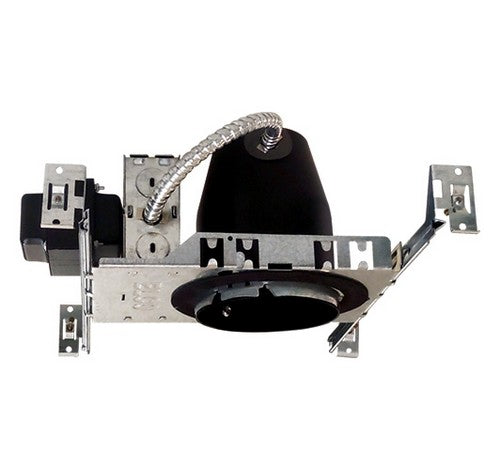

3" new construction housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.

FEATURES :

Single wall IC construction, for use in insulated or non-insulated ceilings.
Flicker Free LED Dimming.
Lamp: MR16 GU/GX5.3 bi-pin LED (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Trims sold separately.

SPECIFICATIONS :

Wattage : 12W
Voltage : 120V
Lamp Type : LED
Wet Location : Listed with Shower Trims
Damp Location : Listed

Construction:
IC rated for direct contact with insulation, for use in IC or non-IC conditions.

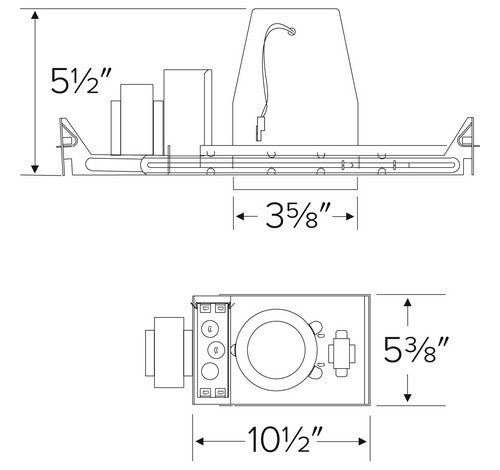

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 3 3/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit knockouts, 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T grids. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.

Electrical:
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Max Wattage: 12W
Magnetic or electronic transformer available.
Thermally protected against improper lamping.

Trims: Compatible with ELCO Low Voltage MR16 trims.

Dimmability:
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a list of compatible dimmers.

Note: Lamp used may affect dimmability.

Lamp: Designed for use with GU5.3 MR16 lamps.

Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
