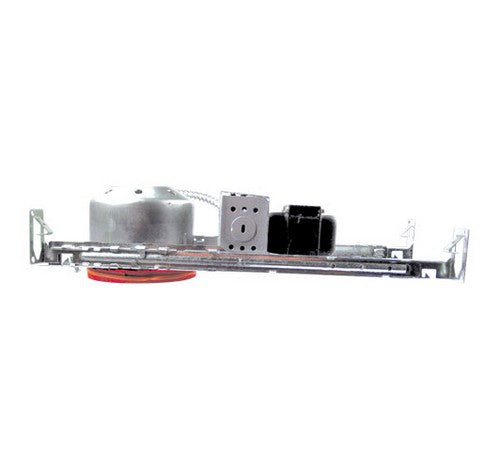

ELCO Lighting EL1499S 4 inch Low Voltage Shallow Housing Non-IC Shallow Housing - Magnetic Transformer

2 sold in last 8 hours
ELCO Lighting
EL1499S
$40.43
$40.43
customers are viewing this product

ELCO Lighting EL1499S

EL1499S Product Description


4" new construction housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.

FEATURES:

Shallow single wall new construction.
Trims sold separately.
Lamp: 50W MAX 12V MR16 GU/GX5.3 bi-pin
LED/Halogen (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.

SPECIFICATIONS :

Wattage 50W
Voltage 120V
Lamp Type GU5.3 BiPin
Damp LocationListed

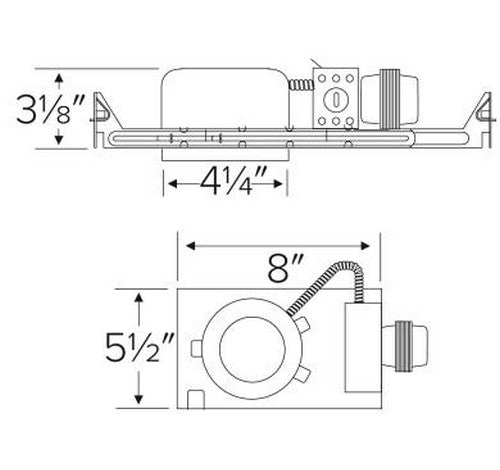

Construction:

Shallow single wall new construction.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation

Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box

Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars

Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical

Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.
Trims: Compatible with ELCO 4" MR16 trims.

Dimmability

Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.
Note: Lamp used may affect dimmabilty.
Lamp: Designed for use with GU5.3 MR16 LED lamps.

Listings

UL Listed for Damp Location. UL Listed for Wet Location with select trims. UL Listed for Feed Through. Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.



About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
