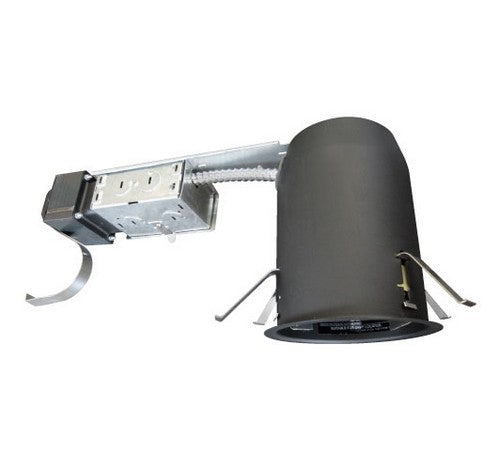

ELCO Lighting EL1499R-75A 75W 4" Low Voltage Airtight Remodel Housing

2 sold in last 8 hours
ELCO Lighting
EL1499R-75A
$44.93
$44.93
customers are viewing this product

Elco Lighting EL1499R-75A

EL1499R-75A Product Description

4" Low Voltage new construction Airtight Universal housing. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.

FEATURES :

Single wall IC remodel construction, for use in insulated or non-insulated ceilings.

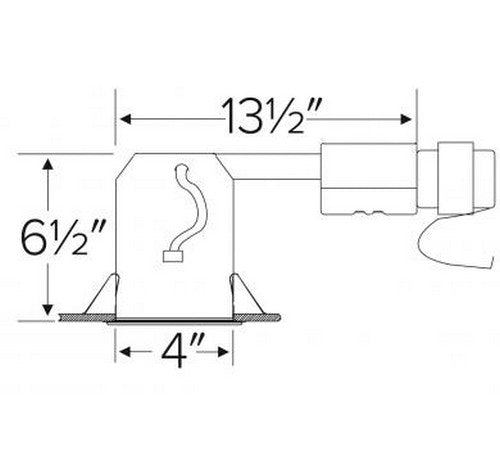

Unit slips through 4 1/4" ceiling cut out.
Integral flange secures fixture against ceiling.
Four remodel clips secure housing and accommodate various ceiling thickness.
Junction box listed for 90° supply wire.
Lamp: 12V, MR16 GU/GX5.3 bi-pin LED (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Trims sold separately.

SPECIFICATIONS :

Wattage : 75W
Voltage : 120V
Dimmable : MLV
Lamp Type : GU5.3 BiPin
Damp Location : Listed

Construction:
Shallow double wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars
can easily be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 4" MR16 trims.

Dimmability:
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.

Note: Lamp used may affect dimmable.

Lamp: Designed for use with GU5.3 MR16 LED lamps.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
