Elco Lighting EL1499LDRICA

EL1499LDRICA Product Description

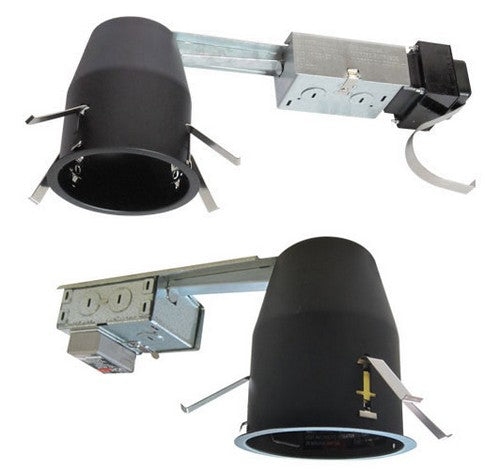

4" remodel housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.

FEATURES :

Single wall IC remodel construction, for use in insulated or non-insulated ceilings.
Flicker Free LED Dimming.
Lamp: 12V, MR16 GU/GX5.3 bi-pin LED (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Trims sold separately.

SPECIFICATIONS :

Wattage : 12W
Voltage : 120V
Lamp Type : GU5.3 BiPin
Wet Location : Listed with wet location trims
Damp Location : Listed

Construction:
Remodel IC airtight housing rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation.

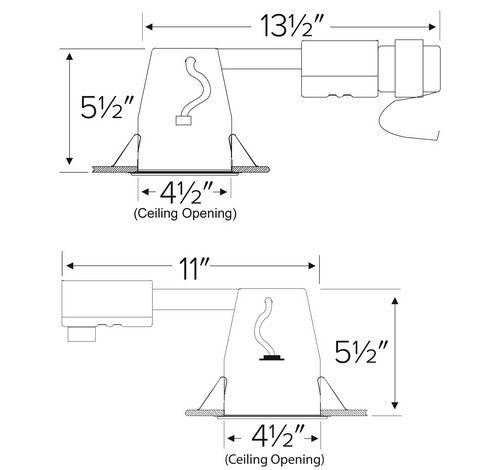

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical:
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 4" MR16 trims.

Dimmability:
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
Dimmability based on lamp.

Lamp: Designed for use with GU5.3 MR16 LED lamps.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
