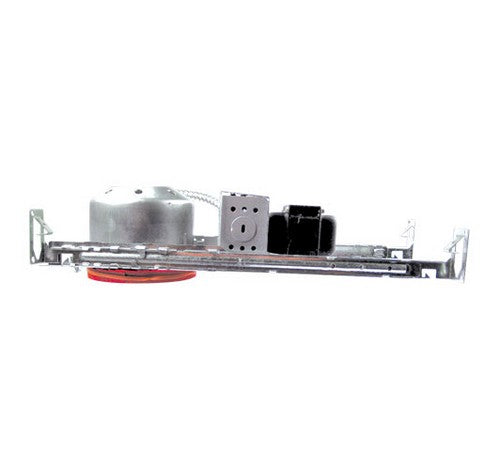

ELCO Lighting EL1499ES 4 inch Low Voltage Shallow Housing Non-IC Shallow Housing - Electronic Transformer
ELCO Lighting EL1499ES
EL1499ES Product Description
4" new construction housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.
FEATURES:Shallow single wall new construction.
Trims sold separately.
Lamp: 50W MAX 12V MR16 GU/GX5.3 bi-pin
LED/Halogen (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Lamp Type GU5.3 BiPin
Shallow single wall new construction.

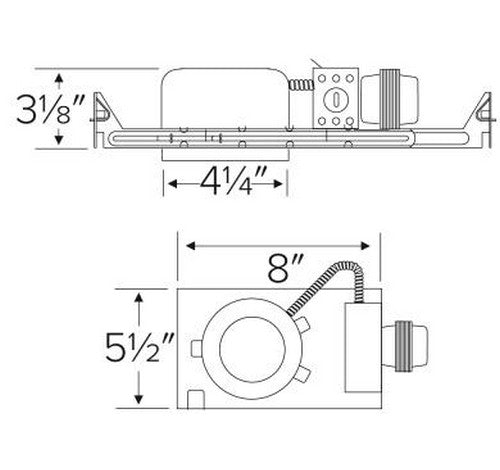

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.
Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.
Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.
Trims: Compatible with ELCO 4" MR16 trims.
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.
Note: Lamp used may affect dimmabilty.
Lamp: Designed for use with GU5.3 MR16 LED lamps.
UL Listed for Damp Location. UL Listed for Wet Location with select trims. UL Listed for Feed Through. Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
