ELCO Lighting EL1499-277A 50W 4" Low Voltage Miniature Universal Housing Magnetic Transformer
2 sold in last 8 hours
customers are viewing this product
Elco Lighting EL1499-277A

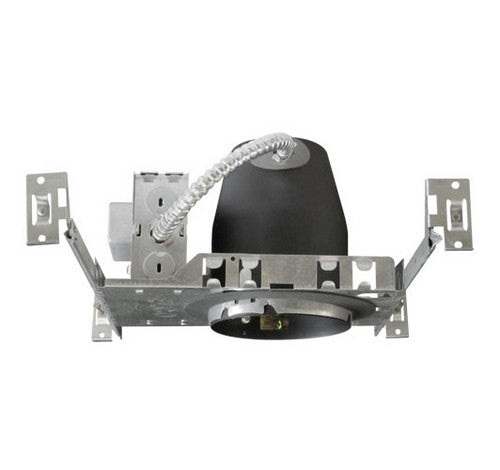

EL1499-277A Product Description4" new construction housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.
FEATURES :Single wall airtight remodel construction.
Trims sold separately.
Lamp: 50W MAX 12V MR16 GU/GX5.3 bi-pin LED/Halogen (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Note: Use only dimmers specifically designed for use with electronic transformer.
SPECIFICATIONS :Wattage : 50W
Voltage : 120V
Lamp Type : GU5.3 BiPin
Damp Location : Listed
Remodel airtight housing.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is
4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.
Note: Lamp used may affect dimmable.
Trims: Compatible with ELCO 4" MR16 trims.
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
Dimmability based on lamp.
Lamp: Designed for use with GU5.3 MR16 LED lamps.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years
cULus Listed for Damp Location.
cULus Listed for Wet Location with select trims.
cULus Listed for Feed Through.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
