ELCO Lighting EFL90L40WF

EFL90L40WF Product Description

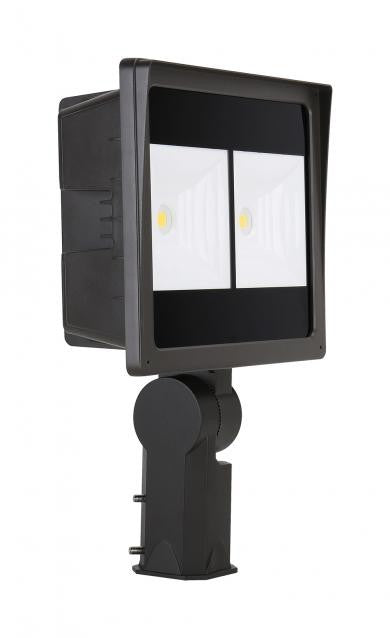

Large LED Floodlight

FEATURES :

Die-cast Aluminum Housing.
Durable dark bronze coat finish.

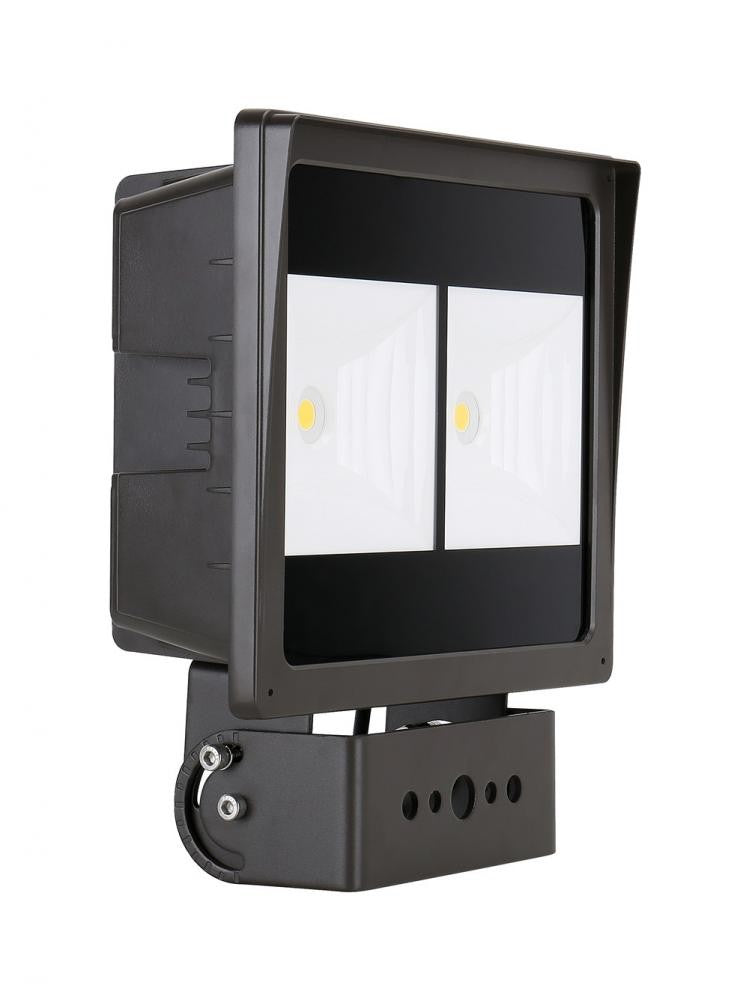

Trunnion mount, can mount buildings, walls, and flat
surfaces.
Standard input wattage: 70W (320W HID equivalent) or
90W (400W HID equivalent).
Optional Accessories:
Slipfitter Adapter (EFLLSF) enables floodlight to be
secured on 2 3/8" O.D. tenons.
Wireguard (EFLLWG) for added protection.
Photocells, button type (EWPPHBU, EWPPHB1) and
swivel type (EWPPHSU).
Motion Detectors (EWMSU, EWMSDU)

SPECIFICATION :

Wattage 70W - 90W
Lumens 8800 lm - 11000 lm
Voltage 120/277V
Color Temp. 4000K - 5000K
Dimmable 0-10V
Lamp Type LED
CRI 70+
Power Factor > 0.9
Wet Location Listed

Lamp:
COB LED, CRI 70+

Optics:
Glass lens

Construction:
Die-cast aluminum housing. Dark bronze powder coated finish. Impact, corrosion, and UV
resistant.

Electrical:
Constant current 120/277V AC Class 2 Driver with a power factor > 0.9. Ambient operating

temperature:
-40°F (-40ºC) to 113°F (45°C). Standard input wattage: 70W (320W HID equivalent) or 90W
(400W HID equivalent).

Dimming
(optional): 0-10V. See Dimmer Compatability List for full list of compatable dimmers.

Listings:
UL listed for wet locations. DLC listed. LM-80 certified. IP65 rated.

Warranty:
ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.
