ELCO Lighting E8LTU40D 8 Inch LED Retrofit Kit with Driver 4000 lm 120/277V Triac/ELV/0-10V

2 sold in last 8 hours

E8LTU40D

$117.09
$117.09
customers are viewing this product

ELCO Lighting E8LTU40D

E8LTU40D Product Description

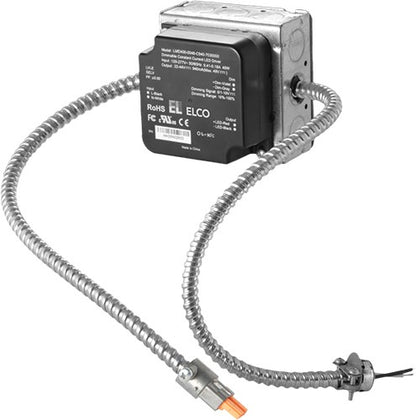

8 Inch LED Retrofit Kit with Driver

FEATURES :

Optional 90 minutes, 120/277 VAC, 60Hz Emergency
Backup.
USA designed and assembled.
LED Light Engine sold separately (see Compatible
Trims).

SPECIFICATIONS :

Lumens 850 lm - 6000 lm
Voltage 120/277V
Dimmable Triac/ELV/0-10V, Sunset,
Lutron EcoSystem,
Lutron
Power Factor ≥0.9
Damp LocationListed

Installation:
Designed to be installed in existing holes for retrofitting less efficient lighting technologies. Junction box is mounted with driver and can be mounted into the ceiling with flex going from power to junction box and from junction box to light engine.

Junction Box:
Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Flicker-Free Dimming.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings:
UL Listed for Damp Location. UL Listed for Wet Location with select trims. UL Listed for Direct
Contact with Insulation and Combustible Material for units up to 2000 lm. UL Listed for Feed Through. ENERGY
STAR® Certified.

Warranty:
ELCO Products are built to last. 5-year Limited warranty.

About Elco Lighting:

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
