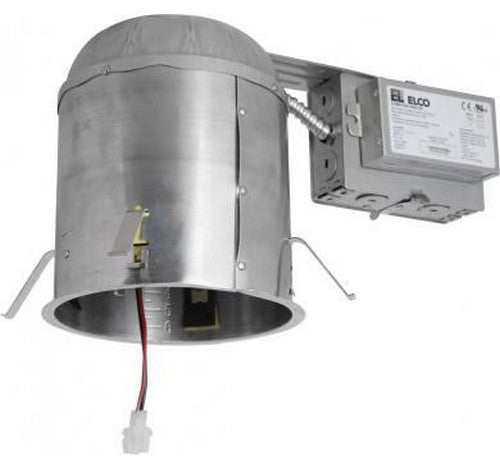

ELCO Lighting E6LRC12ICAD Cedar System Contemporary 6 inch Remodel IC Airtight Recessed Lighting Housing with Driver 1250 Lumens Triac/ELV/0-10V 120/277V

2 sold in last 8 hours
ELCO Lighting
E6LRC12ICAD
$66.00
$66.00
customers are viewing this product

ELCO Lighting E6LRC12ICAD

E6LRC12ICAD Product Description

6" Cedar System Remodel IC Airtight Housing w/Driver.IC Airtight remodel housing for residential and light commercial, 850 to 1250 lumens.

FEATURES:

UL Listed for direct contact with insulation.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
Meets Title 24 requirements. ENERGY STAR® Certified.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 6" LED Light Engines.

SPECIFICATIONS :

Lumens 850 lm - 1250 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV,
Triac/ELV/0-10V, Sunset
Power Factor ≥0.95
Damp LocationListed

Construction:
Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 1250 lumens.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x8 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
