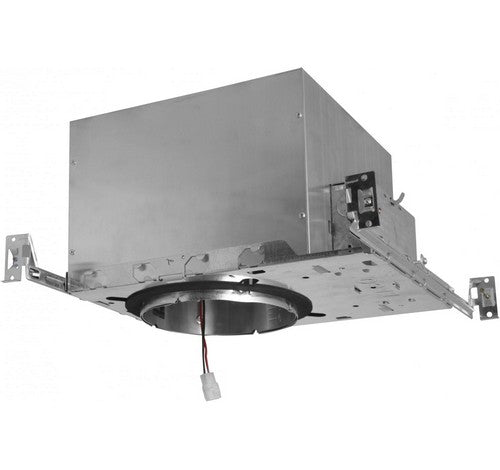

ELCO Lighting E6LC20ICA 6 Inch Cedar System New Construction IC Airtight Housing w/Driver 2000 Lumens Triac/ELV 120V

2 sold in last 8 hours

E6LC20ICA

$87.32
$87.32
customers are viewing this product

ELCO Lighting E6LC20ICA

E6LC20ICA Product Description

6" Cedar System New Construction IC Airtight Housing w/Driver.Double Wall IC Airtight housing for high-end residential and light commercial, 2000 lumen.

FEATURES:

UL Listed for direct contact with insulation.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
Backup.
Meets Title 24 requirements. ENERGY STAR® Certified.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 6" LED Light
Engines

SPECIFICATIONS :

Lumens 2000 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV,
Triac/ELV/0-10V, Sunset
Power Factor ≥0.95
Damp LocationListed

Construction

Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 2000 lumens. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements

Installation

Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Emergency Battery Back-up Option requires access from above.

Junction Box

Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists

Electrical

Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings

UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with
Insulation and Combustible Material. UL Listed for Feed Through.
