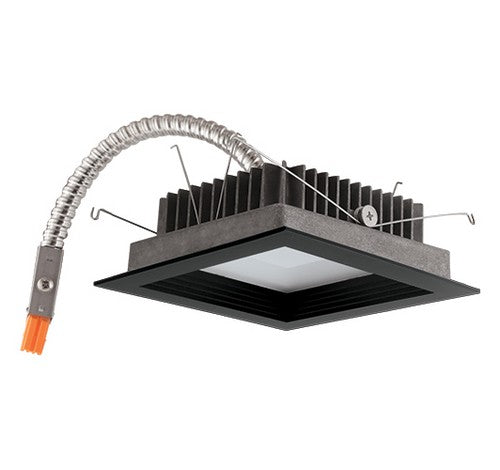

ELCO Lighting E524L2040B 5" LED Light Engine with Baffle Black Trim 2000lm 4000K

2 sold in last 8 hours
ELCO Lighting
E524L2040B
$44.93
$44.93
customers are viewing this product

Elco Lighting E524L2040B

E524L2040B Product Description

ELCO Lighting 's Maple System is the perfect luminaire for commercial, hospitality and multi-stow applications. The system is offered with a plaster frame and four different LED light engines in a variety of lumen outputs and color temperatures. As newer structures are being designed with smaller plenum spaces between floors this product has been engineered to be as shallow as possible to fit almost any above ceiling space while maintaining strong lumen output and light quality.

FEATURES :

Frosted Lens provides smooth lumen distribution and eliminates LED pixelation.
ENERGY STAR® Certified. California Title 24 (JA8-2016-E).
Lifespan of 50,000 Hours L70.
Deep set LED reduces glare while providing area illumination.
Compatible with ELCO Maple™ system frame.

SPECIFICATIONS :

Wattage : 16W - 26W
Lumens : 1100 lm - 2000 lm
Color Temp. : 3000K - 4000K
Lamp Type : LED
CRI : 93+
Wet Location : Listed

Optics: Polycarbonate diffuser with internal reflector create a uniform light distribution with minimal glare.

Construction: IC Rated for Direct Contact with Insulation in E5SQLFU11 housing. Diecast aluminum heatsink for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Electrical:
1100 Lumen uses 16W.
2000 lumen uses 26W.
120/277V input with E5SQLFU frame.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Efficacy of 68-77 lumens per watt.
Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum heat sink.

Dimmability:
Flicker-Free Dimming.
E5SQLFU11 works with Triac/ELV type dimmers with 1100 Lumen Light Engine.
E5SQLFU20 works with 0-10V dimmers with 2000 Lumen Light Engine.
Smoothly dims down to 10% (Dimming range may vary depending on dimmer model).
For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last. 5-year Limited warranty.

Labels and Listings:
UL/cUL Listed for Wet Location
Listed for Direct Contact with Insulation and Combustible Material.
Certified under ASTM-E283 for Air Tight Construction.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
