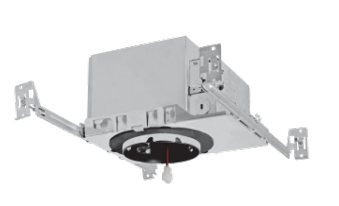

Elco Lighting E4TL16ICAD2 4" Trimless Cedar System New Construction IC Airtight Housing w/Driver, Voltage 120/277V, Dimming Triac/ELV/0-10V
2 sold in last 8 hours
customers are viewing this product
Elco Lighting E4TL16ICAD2
E4TL16ICAD2 Product DescriptionIC Airtight housing for trimless, high-end residential and light commercial, 850-1600 lumens.
Features:UL Listed for direct contact with insulation.
Compatible with 2 x 8 construction.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 4" Trimless LED Light Engines.
2 at the end of the item number denotes Generation 2.
Please note Gen 2 and Gen 1 are not cross compatible
Lumens 1600 lm
Power Factor ≥0.95
Construction: For use in IC and non-IC conditions. Up to 1600 lumens. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.
Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.
Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that double wall housings require Access From Above Ceiling for Battery Maintenance.
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming. For a full list of dimmers refer to the Dimmer Compatibility List.
Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with
Insulation and Combustible Material. UL Listed for Feed Through.
About Elco Lighting:Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
