ELCO Lighting E4TL12ICA 4 Inch Trimless Cedar System New Construction IC Airtight Housing w/Driver 1200 Lumens Triac/ELV 120V

2 sold in last 8 hours
ELCO Lighting
E4TL12ICA
$66.00
$66.00
customers are viewing this product

ELCO Lighting E4TL12ICA

E4TL12ICA Product Description

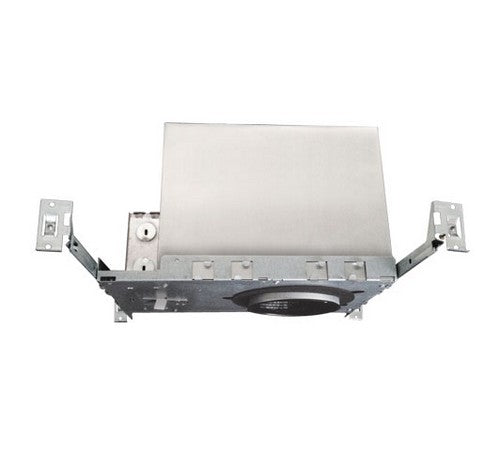

4" Trimless Cedar System New Construction IC Airtight Housing w/Driver IC Airtight housing for trimless, high-end residential and light commercial, 850-1600 lumens.

FEATURES:

UL Listed for direct contact with insulation.
Compatible with 2 x 8 construction.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
Backup.
ENERGY STAR® Certified.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 4" Trimless LED
Light Engines.

SPECIFICATIONS :

Lumens 850 lm - 1600 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV,
Triac/ELV/0-10V, Sunset
Power Factor ≥0.95
Damp LocationListed

Construction

For use in IC and non-IC conditions. Up to 1600 lumens.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation

Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box:

Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical

Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List

Listings

: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through..

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
