Elco Lighting E4SQLHU16D2-EM2
E4SQLHU16D2-EM2 Product Description

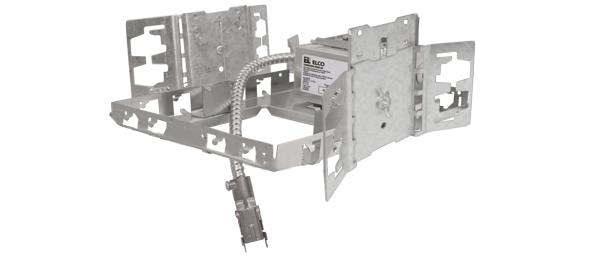

Elco Lighting E4SQLHU16D2-EM2 4" Square Architectural Frame with Driver, Lumens 1600 lm, Voltage 120/277V, Dimming 0-10/Triac/ELV, Generation 2, 12W Emergency Backup.
Features:
Optional 90 minutes, 120/277 VAC, 60Hz Emergency
Backup.
Listed for direct contact with insulation for 850 & 1250
lumen packages.
LED Light Engine and Hanger bars sold separately (see
Compatible Products).
2 at the end of the item number denotes Generation 2.
Please note Gen 2 and Gen 1 are not cross compatible
Specifications:
Technical Details:
Constructed from 16 gauge galvanized steel for large architectural applications. Housing adjusts in frame to
accommodate up to 2” ceiling thickness.
Installation: Frame equipped with vertically adjustable butterfly brackets that accept 1/2" conduit or CChannels (CH26) or linear bar hangers (FB27). Light engine installed into frame.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and
four pry-out knockout slots for easy romex installation.
Hanger Bars: Hanger bars ordered separately as FB27: Set of two 27” hanger bars for wood construction or
CH26: Set of two 26” C-Channel hanger bars for T-Bar Ceiling or use 1/2" EMT pipe.
Electrical:
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.
Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with compatible dimmer.
Flicker-Free Dimming.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For full list of dimmers refer to the Dimmer Compatibility List
