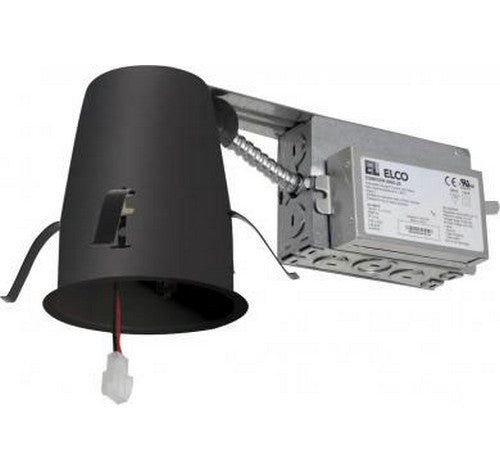

ELCO Lighting E4LRC08ICAD Cedar System Contemporary 4 inch Remodel IC Airtight Recessed Lighting Housing with Driver 850 Lumens ( 120/277V Triac/ELV/0-10V)

2 sold in last 8 hours

E4LRC08ICAD

$77.40
$77.40
customers are viewing this product

ELCO Lighting E4LRC08ICAD

E4LRC08ICAD Product Description

UL Listed for direct contact with insulation.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
ENERGY STAR® Certified.
Flicker-Free Dimming. Special order Lutron Hi-lume Series Drivers.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 4" LED Light Engines.

SPECIFICATIONS :

Construction:
Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 850 lumens.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x6 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 1% with compatible dimmer.
Can be specified with Lutron drivers for specific applications.
For full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
