Elco Lighting E4LK98ICA

E4LK98ICA Product Description

The Koto™ System is the perfect high-end residential downlight system. The module has a 2″ aperture with lumen outputs over 1000 lumens. The small face allows for glare free downlighting and adjustable options that match throughout a project. The module allows for interchanging lenses as well as adding filters like a louver. The quality driver built on top of the module allows for simple product maintenance and updates.

Its simple but precisely designed lens holder allows for quick beam adjustments as well as secondary optics, such as louvers and linear lenses. The same part allows for tool-free trim installation with a simple twist and lock connection. With a CRI of over 95+ and a variety of color temperatures, the Koto™ module is a popular choice for any project.

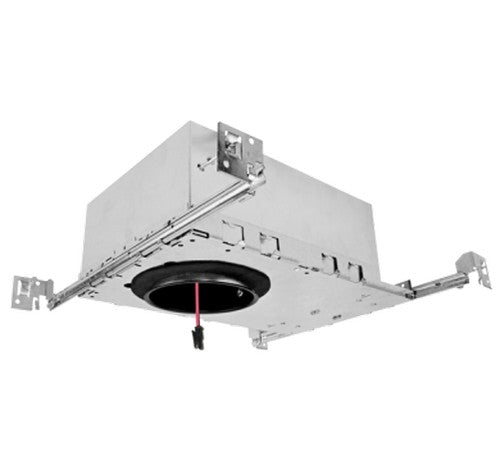

Koto™ Architectural Housing: 120/277V (0-10V/Triac/ELV) or 120V (Triac/ELV) with optional Emergency Battery Backup. Must be used with Koto™ Architectural LED Light Engines (ELK19 or ELK21 Series). Lumen output based on module.

FEATURES :

Easy-to-Remove driver.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Koto™ Architectural LED Light Engines (ELK19 or ELK21 Series).

SPECIFICATIONS :

Wattage : 14.7W
Lumens : 850 (ELK19) - 1100 (ELK21) lm
Voltage : 120/277V or 120V
Dimmable : Triac/ELV or 0-10V/Triac/ELV
Lamp Type : LED
Power Factor : ≥0.95
Damp Location : Listed

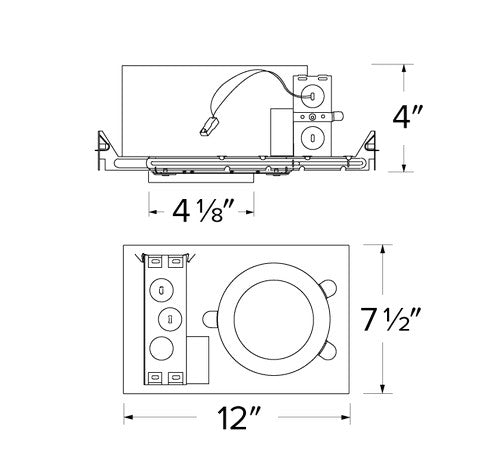

Construction: Double Wall IC Rated for direct contact with insulation. For use in IC and Non-IC conditions. Up to 1100 lumens. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information. Emergency Battery Back-up Option requires access from above. For use with ELCO Koto™ Architectural LED Light Engines (ELK19 or ELK21 Series)

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical: Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor > 0.95.

Dimmability: 3-in-1 dimming: Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. For a full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.

LABELS AND LISTINGS
cULus Listed for Wet Locations
UL Listed
Energy Star Certified
RoHS Compliant
5-Year Limited Warranty
