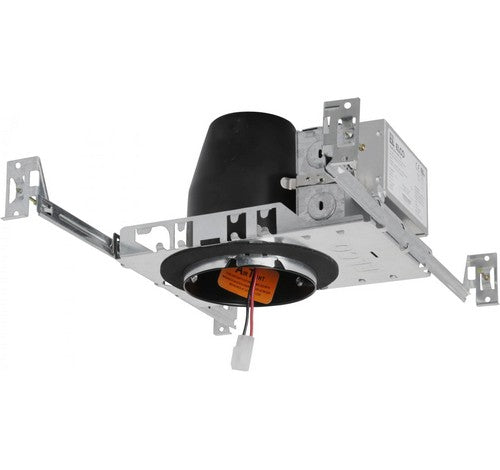

ELCO Lighting E4LC12D 4 Inch Cedar System Non-IC New Construction Housing w/Driver 1250 Lumens (120/277V Triac/ELV/0-10V)

2 sold in last 8 hours

E4LC12D

$64.50
$64.50
customers are viewing this product

ELCO Lighting E4LC12D

E4LC12D Product Description

4" Cedar System Non-IC New Construction Housing w/Driver Non-IC Airtight housing for high-end residential and light commercial, 850 to 1250 lumens.

FEATURES:

Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
Backup.
ENERGY STAR® Certified.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 4" LED Light
Engines.

SPECIFICATIONS :

Lumens 850 lm - 1250 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV,
Triac/ELV/0-10V, Sunset
Power Factor ≥0.95
Damp LocationListed

Construction

Non-IC Frame for non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.

Installation

Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box

Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical

Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor > 0.95.

Dimmability

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings

UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Feed Through.
