ELCO Lighting E4LC16D 4 Inch Cedar System Non-IC New Construction Housing w/ Driver 1600 Lumens (120/277V Triac/ELV/0-10V)
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting E4LC16D

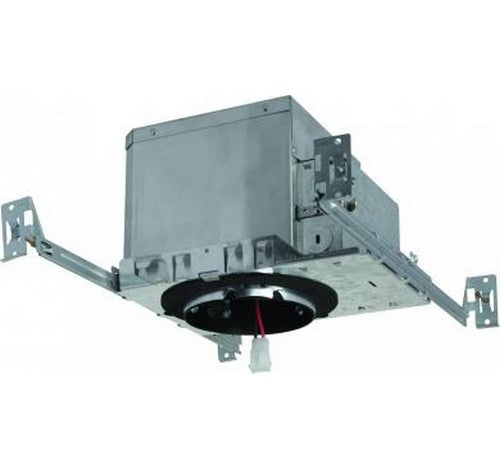

E4LC16D Product Description4" Cedar System Non-IC New Construction Housing w/ Driver.Non-IC Airtight housing for high-end residential and light commercial, 1600 lumens.
FEATURES:ENERGY STAR® Certified.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 4" LED Light
SPECIFICATIONS :Lumens 1600 lm
Voltage 120/277V or 120V
Non-IC Frame for non-IC conditions. Housing adjusts in frame to accommodate up to 1 1/2"
Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.
Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.
Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor > 0.95.
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.
UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Feed Through.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
