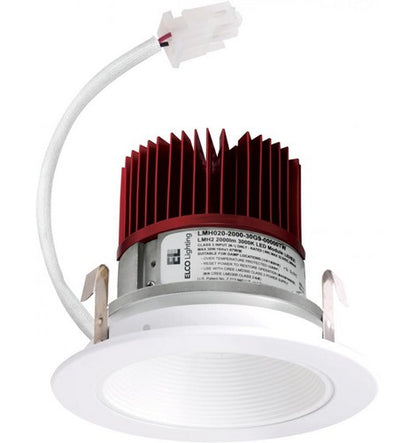

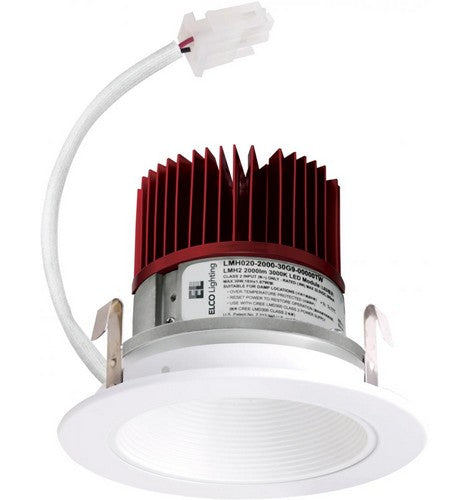

ELCO Lighting E414C1235W 4 Inch LED Light Engine with Baffle Trim White Finish 1250 Lumens 3500K

2 sold in last 8 hours
ELCO Lighting
customers are viewing this product

ELCO Lighting E414C1235W

E414C1235W Product Description

4" LED Light Engine with Baffle Trim.The perfect lighting solution for high-end residential and light commercial projects.


High efficacy LED module.
Triac/ELV/0-10V dimming.
Must be used with ELCO 4" Cedar™ System Housings.
Frosted acrylic module lens for even lumen distribution.
Life span of 50,000 hours L70.
USA designed and assembled.
Limited 5 year warranty.


Wattage 8.76W - 18W
Lumens 850 lm - 1600 lm
Color Temp. 2700K - SunsetK
Lamp Type LED
Beam Angle 60°
CRI 93+
Damp LocationListed


Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED

Trim Construction

Reflector is two piece trim for maximum color versatility. Design allows for minimal glare
and a strong glare cut-off. Trim is constructed of metal for lasting durability.


Must be installed on a Cedar™ System housing with compatible lumen rating. Frames are available for New Construction and Remodel as IC or non-IC.

LED Technology

Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.


UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
