ELCO Lighting E3LRC08ICA 850 lumens 3 Inch IC Airtight Remodel Housing with Driver ( 120V Triac/ELV )

2 sold in last 8 hours

E3LRC08ICA

$67.48
$67.48
customers are viewing this product

ELCO Lighting E3LRC08ICA

E3LRC08ICA Product Description

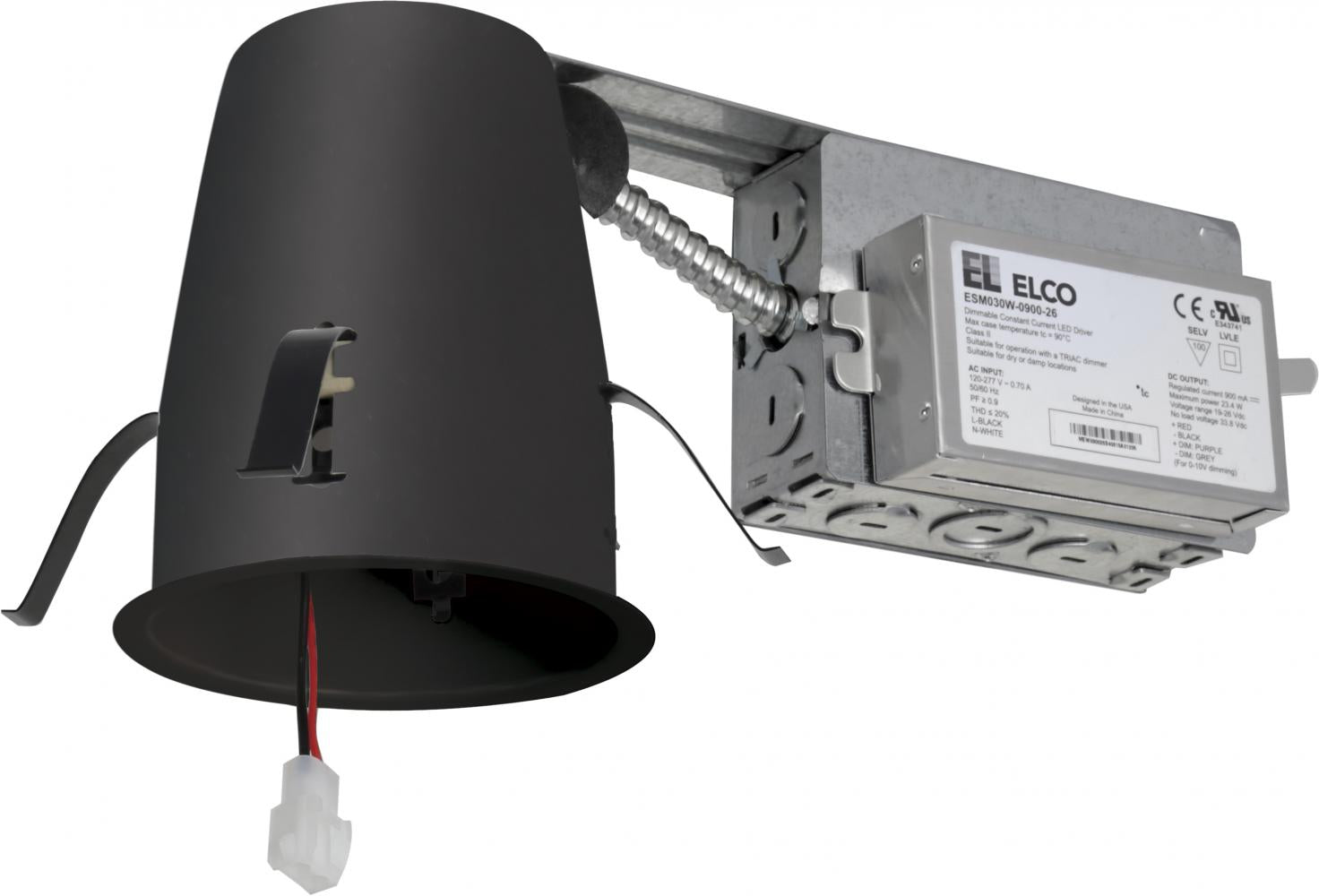

3″ IC Airtight Remodel Housing with Driver IC Airtight remodel housing for high-end residential and light commercial, 850 lumens.

FEATURES:

UL Listed for direct contact with insulation.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
ENERGY STAR® Certified.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 3" LED Light
Engines.

SPECIFICATIONS :

Lumens 850 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV,
Triac/ELV/0-10V, Sunset
Power Factor ≥0.95
Damp LocationListed

Construction

Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 850 lumens.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation

Designed for ceiling plenums where 2x6 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box

Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Electrical

Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For full list of dimmers refer to the Dimmer Compatibility List.

Listings

UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with
Insulation and Combustible Material. UL Listed for Feed Through.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
