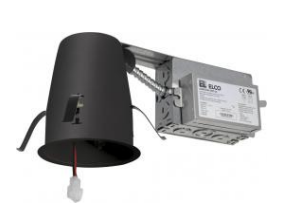

Elco Lighting E3LRC10D2 3 Inches Non-IC Airtight Remodel Housing with Driver, Voltage 120/277V, Dimming Triac/ELV/0-10V

Elco Lighting E3LRC10D2

E3LRC10D2 Product Description

Mix and match any ring finish with any reflector finish

Features:

Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 3" LED Light Engines.
2 at the end of the item number denotes Generation 2.
Please note Gen 2 and Gen 1 are not cross compatible.

Specifications

Lumens 1000 lm
Voltage 120/277V
Dimmable Triac/ELV/0-10V
Power Factor ≥0.95
Damp LocationListed

Construction: Non-IC Frame for non-IC conditions. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Electrical: Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming.
For full list of dimmers refer to the Dimmer Compatibility List.
Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Feed Through.
