ELCO Lighting E3LRC10 3 Inch Non-IC Airtight Remodel Housing with Driver 1000 Lumens ( 120V Triac/ELV )
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting E3LRC10
E3LRC10 Product Description

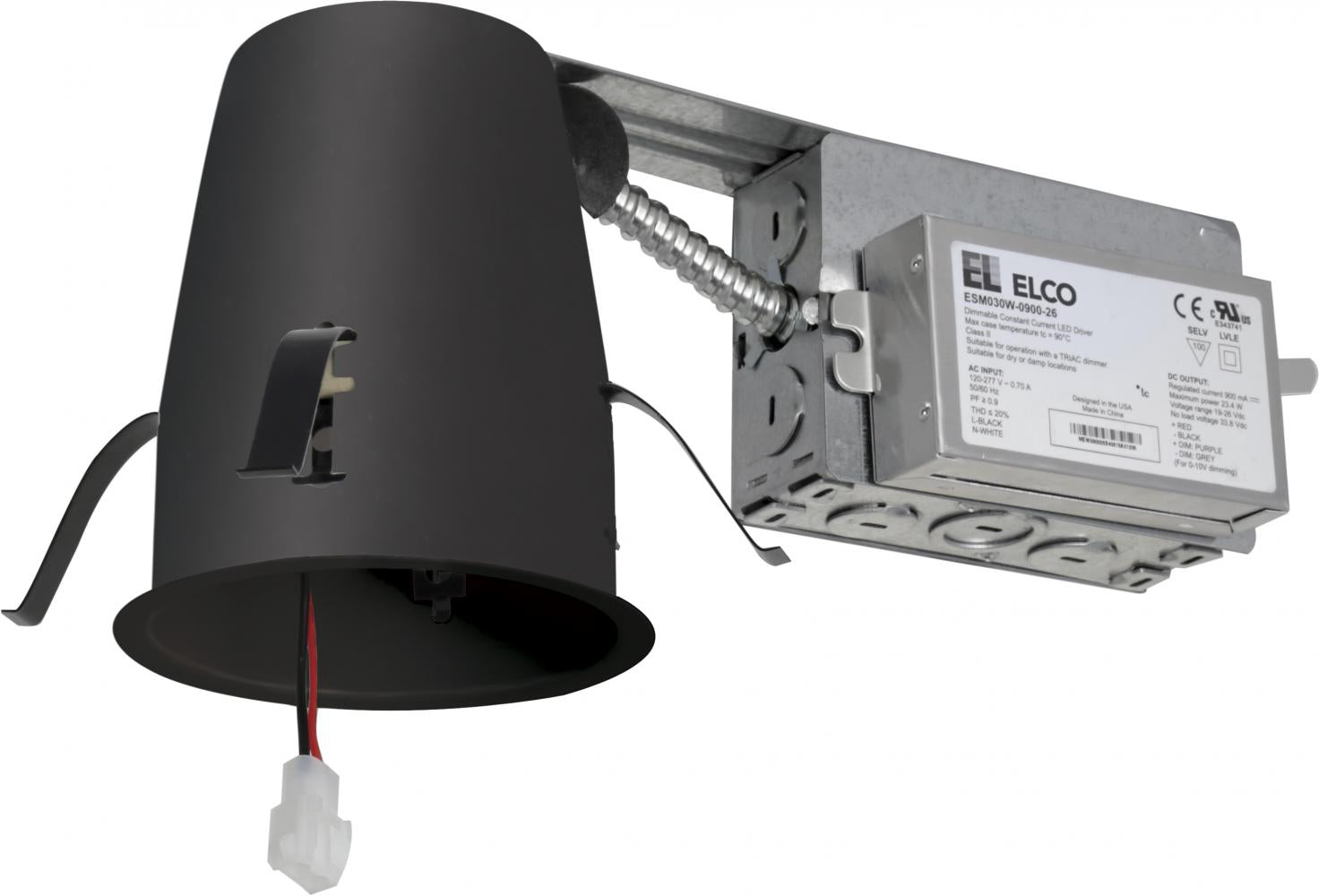

3″ Non-IC Airtight Remodel Housing with Driver
FEATURES:Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
ENERGY STAR® Certified.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 3" LED Light
SPECIFICATIONS :Lumens 850 lm - 1000 lm
Voltage 120/277V or 120V
Power Factor ≥0.95
Non-IC Frame for non-IC conditions.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Designed for ceiling plenums where 2x6 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95..
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For full list of dimmers refer to the Dimmer Compatibility List.
UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Feed Through.
