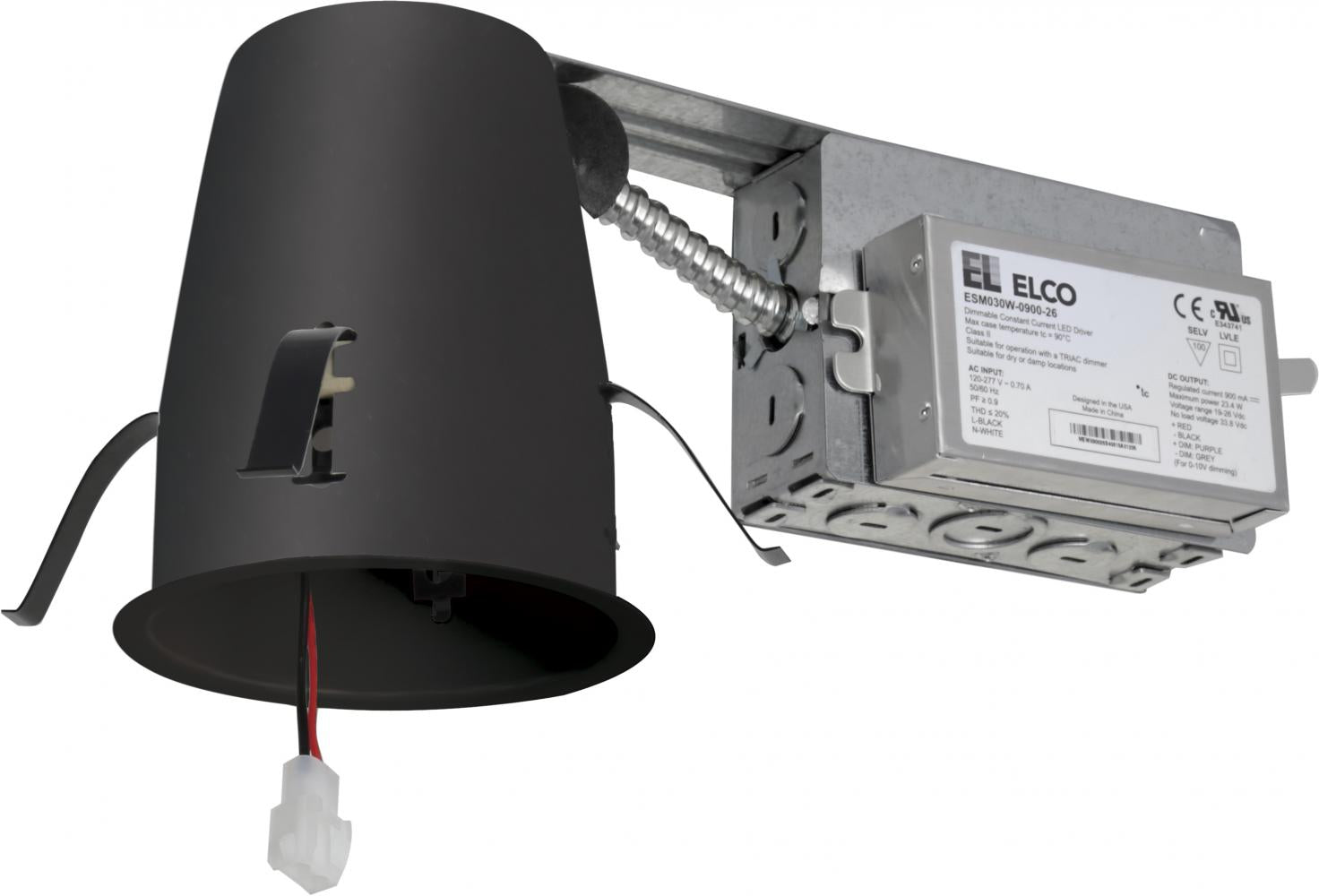

ELCO Lighting E3LRC08ICAD 850 lumens 3 Inch IC Airtight Remodel Housing with Driver ( 120/277V Triac/ELV/0-10V )
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting E3LRC08ICAD
E3LRC08ICAD Product Description
3″ IC Airtight Remodel Housing with Driver IC Airtight remodel housing for high-end residential and light commercial, 850 lumens.
FEATURES:UL Listed for direct contact with insulation.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
ENERGY STAR® Certified.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 3" LED Light
SPECIFICATIONS :Lumens 850 lm
Voltage 120/277V or 120V
Power Factor ≥0.95
Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 850 lumens.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Designed for ceiling plenums where 2x6 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For full list of dimmers refer to the Dimmer Compatibility List.
UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with
Insulation and Combustible Material. UL Listed for Feed Through.
