ELCO Lighting E3LK85ICAD-L

E3LK85ICAD-L Product Description

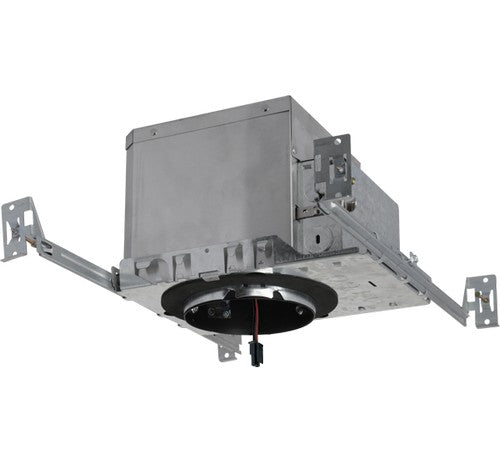

Koto™ Architectural High Lumen Housing: 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) with optional
Emergency Battery Backup. Must be used with Koto™ Architectural LED Light Engines (ELK21 Series Only).

FEATURES :

IC Airtight for direct contact with insulation.
Easy-to-Remove driver.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Koto™ Architectural LED Light
Engines (ELK21 Series Only).

SPECIFICATIONS :

Wattage 18.9W
Lumens 1500 lm
Voltage 120/277V
Dimmable 0-10V/Triac/ELV (Lutron 1% Dimming)
Lamp Type LED
Power Factor ≥0.95
Damp Location Listed

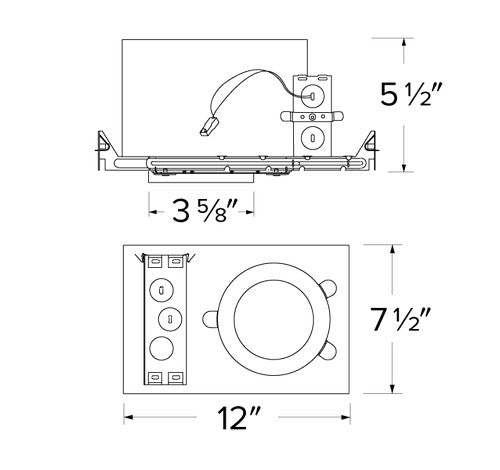

Construction: Double Wall IC Rated for direct contact with insulation. For use in IC and Non-IC conditions. Up
to 1500 lumens. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with
gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can
easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed
information. Emergency Battery Back-up Option requires access from above. For use with ELCO Koto™
Architectural LED Light Engines (ELK21 Series Only)

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size
conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,
and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be
repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for
single-person installation while easily aligning the housings with the joists.

Electrical: Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor >0.95.

Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that
double wall housings require Access From Above Ceiling for Battery Maintenance.

Dimmability: 3-in-1 dimming: Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a
compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. For a full list of dimmers
refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with
Insulation and Combustible Material. UL Listed for Feed Through.
