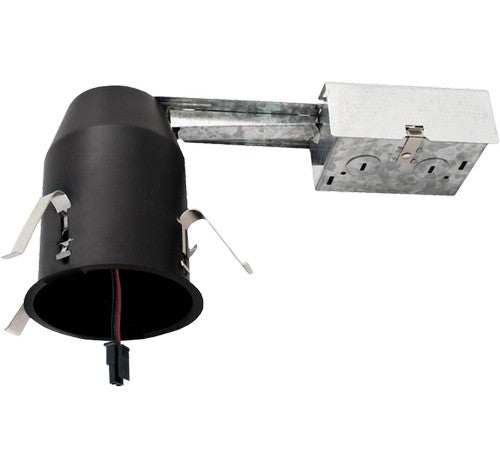

ELCO Lighting E3LK65RICA 10.5W 3" Recessed Remodel Housing for Koto™ Architectural LED Light Engine

2 sold in last 8 hours
ELCO Lighting
E3LK65RICA
$37.32
$37.32
customers are viewing this product

Elco Lighting E3LK65RICA

E3LK65RICA Product Description

The Koto™ System is the perfect high-end residential downlight system. The module has a 2″ aperture with lumen outputs over 1000 lumens. The small face allows for glare free downlighting and adjustable options that match throughout a project. The module allows for interchanging lenses as well as adding filters like a louver. The quality driver built on top of the module allows for simple product maintenance and updates.

Its simple but precisely designed lens holder allows for quick beam adjustments as well as secondary optics, such as louvers and linear lenses. The same part allows for tool-free trim installation with a simple twist and lock connection. With a CRI of over 95+ and a variety of color temperatures, the Koto™ module is a popular choice for any project.

FEATURES :

Koto™ Architectural Housing: 120V Triac/ELV.
Must be used with Architectural Koto™ LED Light Engines (ELK19 or ELK21 Series).
Lumen output based on module.

SPECIFICATIONS :

Wattage : 10.5W
Lumens : 750 (ELK19) - 950 (ELK21) lm
Voltage : 120V
Dimmable : Triac/ELV

Lamp: Designed for use with ELCO Architectural Koto™ LED Light Engines (ELK19 or ELK21 Series)

Construction:
Single Wall IC Rated for direct contact with insulation, for use in IC or non-IC conditions.

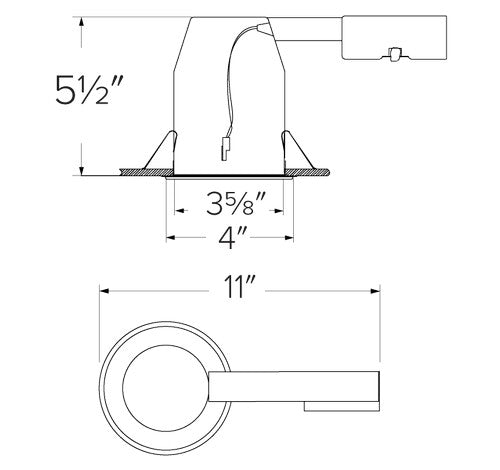

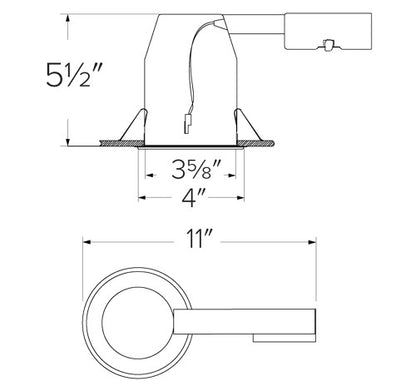

Housing accommodates up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 3 5/8". See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.

Electrical:
Input Voltage: 120V.
High efficiency driver with power factor >0.9

Dimmability : Triac/ELV

Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

LABELS AND LISTINGS
cULus Listed for Wet Locations
UL Listed
Energy Star Certified
RoHS Compliant
5-Year Limited Warranty

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
