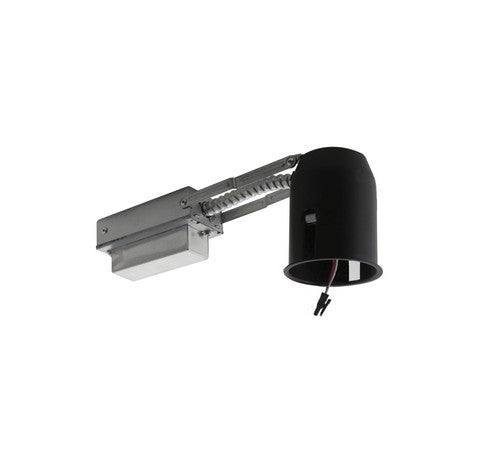

Elco Lighting E2LC185RICA
E2LC185RICA Product Description
Single Wall IC.Triac/ELV/0-10V (120/277V), Triac/ELV (120V).

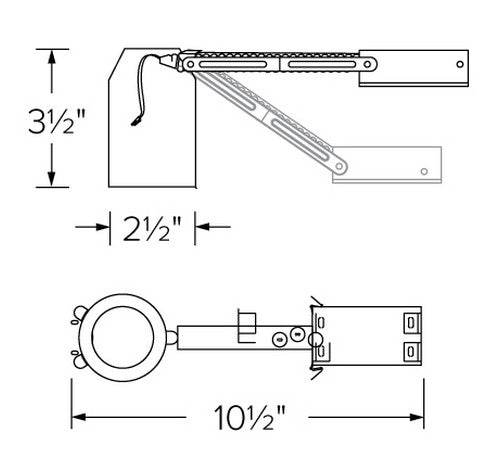

Height allows for use in 2x4 construction.
Flexi-joint allows for easy installation and solid support.
Driver included on housing.
CA Title 24 compliant (JA8-2016-E).
LED Light Engine sold separately.
U.S. Patent 10,281,131.
SPECIFICATIONS :
Wattage 11WVoltage 120/277V or 120V
Dimmable Triac/ELV/0-10V,
Triac/ELV
Wet Location Listed
Construction:
IC Rated for Direct Contact with Insulation, for use in IC and non-IC conditions.
Housing adjusts to accommodate up to 1 1/4" ceiling thickness.
Aluminum housing for greater heat dissipation.
Installation: Designed for shallow ceiling plenums where 2x4 joists or taller are used. Maximum hole cutout is 2 5/8”. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Electrical: Driver connects to 120V only or 120/277V power supply. High Efficiency driver with a power factor > 0.9.
Dimmability: Works with 120V Triac and ELV type dimmers and 120/277V 0-10V dimming. Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.
Warranty: ELCO Products are built to last with a 5-year Limited warranty.
Labels and Listings:
UL Listed for Wet Location.
UL Listed for Feed Through.
Meets restricted airflow requirements (per ASTM E-283).
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).
