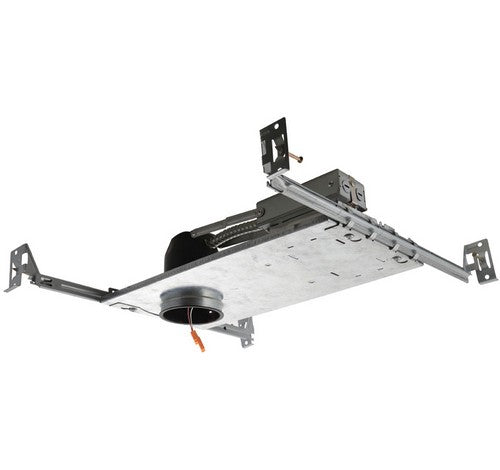

Elco Lighting E2LC175ICA

E2LC175ICA Product Description

Single Wall IC.
Height allows for use in 2x4 construction.
Driver included on housing.
CA Title 24 compliant (JA8-2016-E).
LED Light Engine sold separately.
U.S. Patent 10,281,131.

SPECIFICATIONS :

Wattage 9W
Voltage 120V
Dimmable Triac/ELV
Wet Location Listed

Construction:
IC Rated for Direct Contact with R60 spray insulation, for use in IC and non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Driver mounted on junction box for cooler LED operation.

Installation: Designed for shallow ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 2 5/8”. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 1/2” trade size pry-out knockouts. Four Romex pry-outs with strain relief for easy romex installation. Strain clamps to install or remove covers for easy access and grounding.

Hanger Bars: Pre-installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9.

Dimmability: Works with 120V Triac and ELV type dimmers and 120-277V 0-10V dimming . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Trims: Compatible with - E210C18, E213C18, E214C18, E215C18, E218C18, E219C18 series.

Warranty: ELCO Products are built to last with a 5-year Limited warranty.

Listings
UL Listed for Wet Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
Meets restricted airflow requirements (per ASTM E-283).
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).
