ELCO Lighting E2L97F35BZ

E2L97F35BZ Product Description

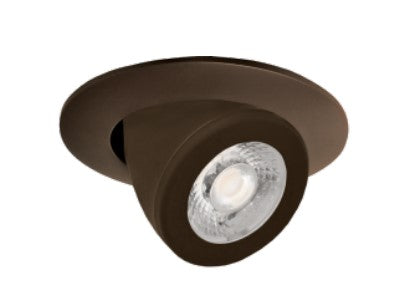

The Teak™ LED light engine is an IC Rated diecast construction specification grade 2″ LED downlight. Boasting an output up to 1100 lumens - more than a traditional 75W MR16 halogen lamp. Style options, beam options and color finish options offer maximum flexibility in design. Drivers and housings are specified separately for maximum flexibility per your project’s needs. The patented engine offers auto release clips that make installation a breeze.

Features:

Dimmable ELV, Triac or 0-10V depending on driver
used.
Same LED light engine for 850 and 1100 lumens (see
housings)
UL Listed for Direct Contact with insulation
Works with compatible ceilings up to 1¼″
Height allows for use in ceilings with under 5" depth.
Ceiling thickness can be reduced from fixture depth.
38° Standard beam with optional 28° and 60°
Damp Location Rated
JA8-2016-E, UL, and Energy Star Qualified
Life Span 50,000 Hours L70
U.S. Pat. 10,125,959

Technical Details:

Optics: PC Lens for even lumen distribution. Standard 38° lens. Optional 28° (EP716C) and 60° (EP718C) available.

Construction: Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish prevents rust and paint cracking.

Adjustability: 360° rotation with 80° gimbal adjustability.

Installation: All Teak™ LED Light Engines feature a patented trigger release clip that will depress as the module is being inserted, holding the module in place. Hole cutout size: 2-5/8" (68 mm). Teak™ LED Light engines require driver

LED Technology: Extremely accurate color rendering with 93+ CRI. Efficacy of up to 104 lumens per watt. Lumen Maintenance of 50,000 hours L70 based on LM80. Superior Thermal Management by utilizing diecast aluminum body as heat sink.

Electrical: Requires driver. Driver and housing can be specified with voltage (120V or 120/277V) and dimming (ELV/Triac or 0-10V/Triac/ELV).

Dimming: See Teak™ Housings and drivers for specific dimming information.

Listings: UL Listed for DAMP Location. UL Listed for direct contact with insulation. Airtight per ASTM E-283. ENERGY STAR® Qualitified. California Title 24 (JA8-2016-E).

Warranty: ELCO Products are built to last with a 5-year Limited warranty.
