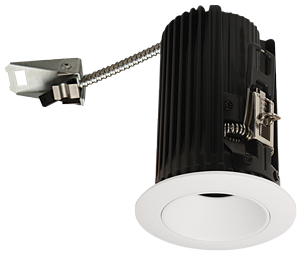

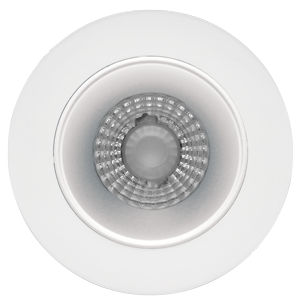

ELCO Lighting E2L10F27H Teak System Contemporary Haze/White LED 2 Inch Recessed Lighting Round Reflector 120V 2700K
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting E2L10F27H
E2L10F27H Product Description
The Teak™ System is the perfect recessed residential downlight system featuring cutting-edge energy-efficient technology and design at an affordable price. These modules have a 2″ aperture with lumen outputs that range from 800-1100 lumens. The Teak™ light engines allows for optional field changeable lenses making them the perfect fit for any room design. The quality driver built on top of the module allows for simple product maintenance and updates, and its auto release clips for easy installation.
Using industry leading technology ELCO offers the Teak™ LED Module with standard 38º beam angle, with field changeable 28º and 60º lens options to give designers and architects choices when laying out a room, whether the downlight is spot lighting a breakfast table or lighting up a bedroom ELCO has the necessary beam angle options.
All Teak™ LED Light Engines feature a patented trigger release clip that will depress as the module is being inserted, holding the module in place
FEATURES :Wet Location Rated for Indoor and Outdoor Use (Under covered ceilings)
Same LED light engine for 850 and 1100 lumens (see housings)
UL Listed for Direct Contact with insulation
Standard with 38° beam. Field Changeable optics for 28° (EP716C) and 60° (EP718C)
CAT24, JA8-2016-E and Energy Star Listed
Life Span 50,000 Hours L70
U.S. Pat. 10,125,959
SPECIFICATIONS :Wattage : 8.6 - 10.5W
Lumens : 850 - 1100 lm
Color Temp. : 2700K - 4000K
Lamp Type : LED
Beam Angle : 38º
CRI : 93+
Wet Location : Listed
Optics: Standard with 38° beam. Field changeable optics for 28° (EP716C) and 60° (EP718C)
Construction: Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.
Installation: All Teak™ LED Light Engines feature a patented trigger release clip that will depress as the module is being inserted, holding the module in place. Hole cutout size: 2-5/8" (68 mm)
Extremely accurate color rendering with 93+ CRI.
Efficacy of max. 97 lumens per watt.
Lumen Maintenance of 50,000 hours L70 based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum body as heat sink.
Electrical: Low voltage input. Requires compatible power supply.
Dimming: Works with Triac/ELV type dimmers when powered by 120V driver. Works with 0-10V/Triac/ELV dimmers when powered by 120/277V driver.
Warranty: ELCO Products are built to last with a 5-year Limited warranty.
LABELS AND LISTINGS
UL Listed for Wet Location.
UL Listed for Direct Contact with insulation.
ENERGY STAR® Listed.
5-Year Limited Warranty
California Title 24 (JA8-2016-E).
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
