ELCO Lighting E2699LDRICEA

E2699LDRICEA Product Description

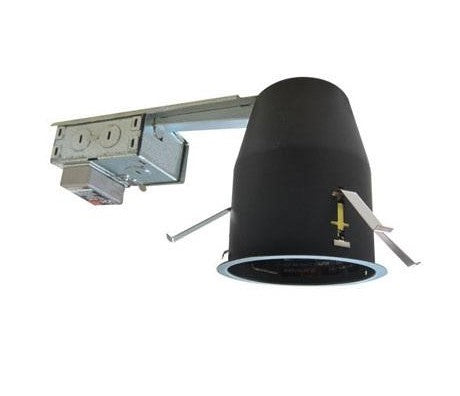

3" remodel housing with a magnetic or electronic transformer designed for LED MR16 lamps. Uses a GU5.3 BiPin socket for use with Bi-Pin LED MR16 lamps.

Features:

Single wall Airtight IC construction, for use in insulated
ceilings.
Thermally protected magnetic transformer,
120V/12V/14W Magnetic AC.
Lamp: MR16 GU/GX5.3 BiPin LED/Halogen (not
included).
Note: Use only dimmers specifically designed for used
with magnetic transformer. Low voltage luminaires may
produce audible sound when used with dimmers.

Specifications:

Wattage 12W
Voltage 120V
Lamp Type LED
Wet Location Listed with Shower Trims
Damp LocationListed

Technical Details

Construction:
IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Aluminum housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. Maximum hole cutout is 3 3/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical:
• Input Voltage: 120V AC.
• Output Voltage: 12V AC.
• Max Wattage: 12W
• Magnetic or electronic transformer available. No minimum load.
• Thermally protected against improper lamping.

Trims: Compatible with ELCO Low Voltage MR16 trims.

Dimmability:
• Magnetic transformer dims with MLV type dimmers.
• Electronic transformer dims with ELV type dimmers.
• See dimming compatibility list for a list of compatible dimmers.
• Note: Lamp used may affect dimmability.

Lamp: Designed for use with GU5.3 MR16 LED lamps.

Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

About Elco Lighting:

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
