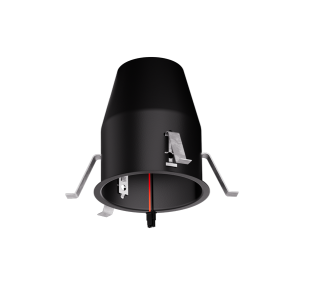

Elco Lighting E24V490RICA 4" Remodel Dedicated LED IC Airtight Housing, Voltage 24V DC, Wattage 14W

ELCO Lighting E24V490RICA

E24V490RICA Product Description

Elco Lighting 4″ Remodel Dedicated LED IC Airtight Housing, Voltage 24V DC, Wattage 14W

FEATURES :

Only for use with 24V DC Koto Module.
IC Airtight for direct contact with insulation.
Simple installation with 24V Wire.
Meets Title 24 requirements. ENERGY STAR® Certified.
Trims and module sold separately

Specifications:

Wattage 14W
Voltage 24V DC
Damp Location Listed

Technical Details:

Construction:
• Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.

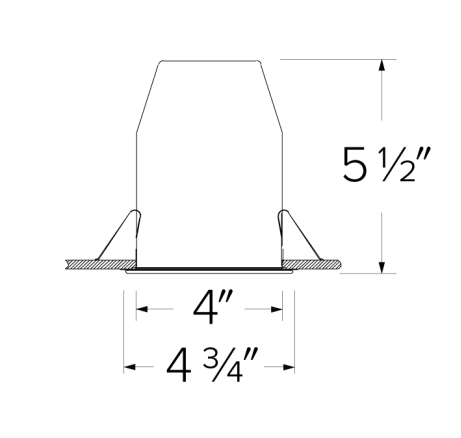

• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Steel housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 4 1/4". Suitatble for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical:
• Input Voltage: 24V DC.
• Inherently protected.

Lamp: Designed for use with ELCO 24V DC Koto Module.

Listings:
• UL Listed for Damp Location.
• UL Listed for Wet Location with select trims.
• UL Listed for Feed Through.
• UL Listed for Direct Contact with Insulation and Combustible Material.
• Airtight per ASTM E-283.
• Install a JA8-2022-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
