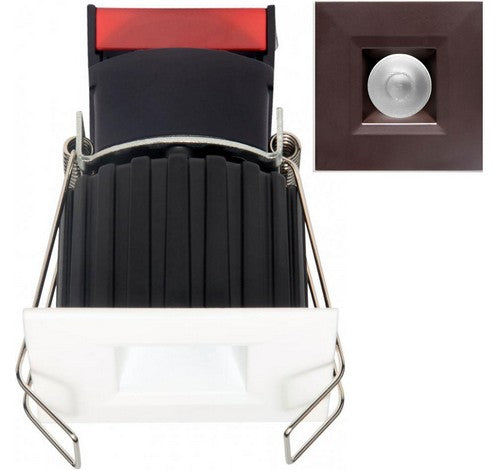

ELCO Lighting E1L12F27BZ Oak System Modern Bronze LED 1" Square Recessed Downlight 2700K
2
sold in last
8
hours
E1L12F27BZ
$82.71
customers are viewing this product
PRODUCT DESCRIPTION
ELCO Lighting E1L12F27BZ
E1L12F27BZ Product Description
Small aperture 12V Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable MLV or ELV depending on transformer used.
IC Airtight for use with direct contact to insulation
Height allows for use in 2 x 4 construction
Daisy chain up to 6 fixtures with E1LDRV60
38° Standard beam with optional 28° and 60°
Remodel requires no frame
Wet Location Rated for Indoor and Outdoor Use
JA8-1016-E, UL, and Energy Star Listed
Life Span 50,000 Hours L70
SPECIFICATIONS :
Wattage 6WLumens 600 lm - 675 lm
Voltage 12V
Color Temp. 2700K - 4000K
Dimmable MLV/ELV
Lamp Type LED
Beam Angle 28° - 60°
Optics: PC Lens for even lumen distribution.
Construction: Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.
Installation: Can be installed on E1LF1 New Construction frame. Remodel requires no frame.
Hole cutout size: 2" (50 mm)
LED Technology:
Extremely accurate color rendering with 93+ CRI.
Efficacy of max. 97 lumens per watt.
Lumen Maintenance of 50,000 hours L70 based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum body as heat sink.
Electrical/Transformer: Requires transformer. Can be daisy chained up to 6 fixtures with E1LDRV60.
Dimming: Dims with MLV dimmers when powered by magnetic transformer. Works with ELV dimmers when powered by ELV transformer.
Listings: UL Listed for Damp Location. ENERGY STAR® Certified. California Title 24 (JA8-2016-E).
Warranty: ELCO Products are built to last with a 5-year Limited warranty.
About Elco Lighting
Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.Have Questions?Ask a BuyRite Electric Expert
