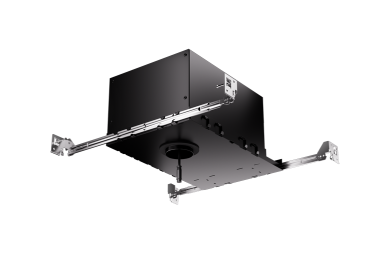

Elco Lighting E1DWN08AJIC Oak™ Architectural R60 ICA New Construction Housing for Downlights, Lumens 900 lm, Triac/ELV

2 sold in last 8 hours
ELCO Lighting
customers are viewing this product


E1DWN08AJIC Product Description

R60 Specialty housing for spray in insulation. To be used with Oak™ Architectural LED Downlights only


R60 Housing designed for speciality spray in insulation
Housing to be used with Oak™ Architectural Downlights only (E1AK02 & E1AK12)
UL Listed for direct contact with insulation
Housing specified for 900 lumens (8W)
Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triack/ELV)
Damp Location Listed, Wet Location with Wet Location Light Engines
JA8-2016-E, UL Listed


Wattage 8W
Lumens 900 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV,

Technical Details:

Construction: IC rated for direct contact with insulation. For use in IC and non-IC conditions.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical: Driver is rated for 120V or 120/277V input. High Efficiency driver with a power factor > 0.95.

Dimmability: Option Triac/ELV dimming or 0-10V/Triac/ELV dimming can be specified. Can be specified with Lutron drivers.

Listings: cUL Listed. UL Listed for Damp Location and for Wet Location with WET location Light Engines. UL Listed for Direct Contact with Insulation and Combustible Material.

About Elco Lighting:

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
