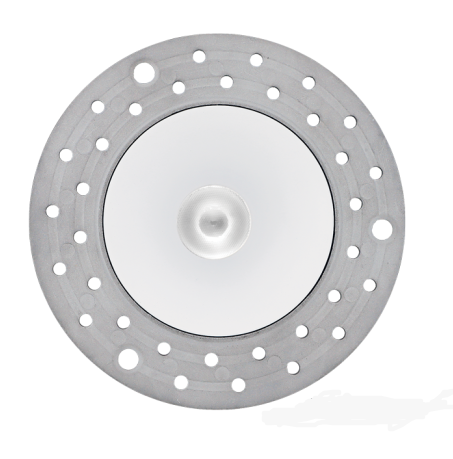

Elco Lighting E1AK61WF27W 1″ Round Architectural Oak™ Trimless Downlight, Color Temperature 2700K, Lumens 850 lm, Beam Angle 50°, All White
Elco Lighting E1AK61WF27W
E1AK61WF27W Product DescriptionSmall aperture downlight delivers up to 1000 lumens. More than a traditional 50W MR16 halogen lamp. Beam options and color finish options offer maximum flexibility in design. Drivers and housings are specified separately for maximum flexibility per your project’s needs. The patented engine offers auto-release clips that make installation a breeze.
Lumens 850 lm
Color Temp. 2700K
Lamp Type LED
Beam Angle 50°
Wet Location Listed
IC Airtight for use with Direct Contact to insulation

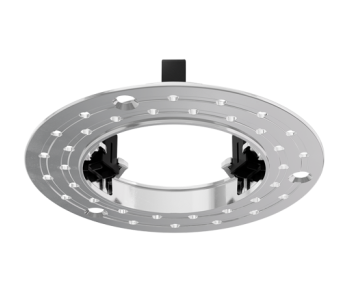

Trimless Downlight Requires: 1″ Trimless Spackle Frame (EL01SFR) sold separately
Works with compatible ceilings up to 1¼″

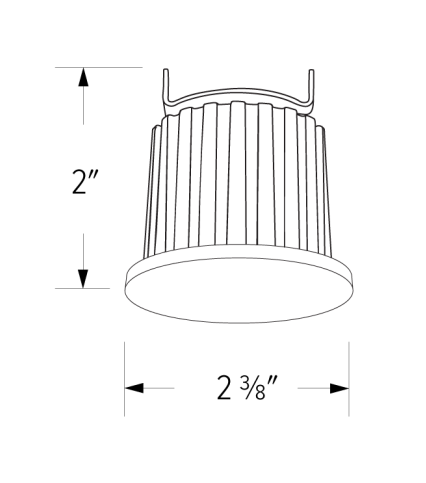

Height allows for use in ceilings with under 3″ depth. Ceiling thickness can be reduced from fixture depth.
Remodel requires no frame. New construction E1TRL08AJIC frame available
38° Standard beam with optional 28° and 50°
Wet Location Rated
JA8-2022-E, UL Listed, and Energy Star Qualified
Life Span 50,000 Hours L70
Optics: PC Lens for even light distribution. Standard 38° lens. Optional 28° (EP713C) and 50° (EP715C) available.
Construction: Diecast construction for lasting quality and greater heat dissipation. High-quality powder coat finish prevents rust and paint cracking.
Installation: Hole cutout size: 2 3/4" (70 mm). Oak™ LED Light engines require driver. Can be utilized in new construction and remodel applications.
LED Technology: Extremely accurate color rendering with 93+ CRI. Efficacy of up to 104 lumens per watt. Lumen Maintenance of 50,000 hours L70 based on LM80. Superior Thermal Management by utilizing diecast aluminum body as heat sink.
Electrical: Requires driver. Driver and housing can be specified with voltage (120V or 120/277V) and dimming (ELV/Triac or 0-10V/Triac/ELV)
Compatible Housings/Delivered Lumens: Architectural Oak™ Light Engines are compatible with 120/277V 0-10V/Triac/ELV or 120V Triac/ELV Architectural Oak™ Housings.
•Delivered Lumens: 2700K: 850 lm, 3000K: 900 lm, 3500K: 950 lm, 4000K: 1000 lm, Sunset: 850 lm
Dimming: See Oak™ Housings and drivers for specific dimming information.
Listings: cUL Listed. UL Listed for Wet Location. UL Listed for direct contact with insulation. Airtight per ASTM
E-283. ENERGY STAR® Qualitified. California Title 24 (JA8-2022-E).
Warranty: ELCO Products are built to last with a 5-year Limited warranty
