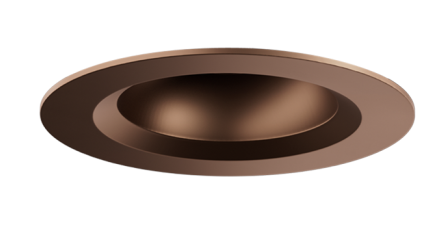

Elco Lighting E1AK02NF35BZ 1″ Round Recessed Architectural Oak™ Downlight, Color Temperature 3500K, Lumens 950 lm , Beam Angle 28°, All Bronze
ELCO Lighting E1AK02NF35BZ
E1AK02NF35BZ Product DescriptionSmall aperture downlight delivers up to 1000 lumens. More than a traditional 50W MR16 halogen lamp. Style options, beam options and color finish options offer maximum flexibility in design. Drivers and housings are specified separately for maximum flexibility per your project’s needs. The patented engine offers auto-release clips that make installation a breeze.
IC Airtight for use with Direct Contact to insulation
Works with compatible ceilings up to 1¼″
Height allows for use in ceilings with under 2″ depth. Ceiling thickness can be reduced from fixture depth.
Remodel requires no frame. New construction E1LDWN1 frame available
38° Standard beam with optional 28° and 50°
Wet Location Rated for Indoor and Outdoor Use
JA8-2022-E, UL Listed, and Energy Star Qualified
Life Span 50,000 Hours L70
Lumens 950 lm
Voltage 12V AC
Color Temp. 3500K
Lamp Type LED
Beam Angle 28°
Wet Location Listed
Optics: PC Lens for even light distribution. Standard 38° lens. Optional 28° (EP713C) and 50° (EP715C) available.
Construction: Diecast construction for lasting quality and greater heat dissipation. High-quality powder coat
finish prevents rust and paint cracking.
Installation: Hole cutout size: 2" (50 mm). Oak™ LED Light engines require driver. Can be utilized in new
construction and remodel applications.
LED Technology: Extremely accurate color rendering with 93+ CRI. Efficacy of up to 104 lumens per watt.
Lumen Maintenance of 50,000 hours L70 based on LM80. Superior Thermal Management by utilizing
diecast aluminum body as heat sink.
Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to
become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when
dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT)
Electrical: Requires driver. Driver and housing can be specified with voltage (120V or 120/277V) and
dimming (ELV/Triac or 0-10V/Triac/ELV)
Compatible Housings/Delivered Lumens: Architectural Oak™ Light Engines are compatible with
120/277V 0-10V/Triac/ELV or 120V Triac/ELV Architectural Oak™ Housings.
•Delivered Lumens: 2700K: 850 lm, 3000K: 900 lm, 3500K: 950 lm, 4000K: 1000 lm, Sunset: 850 lm
Dimming: See Oak™ Housings and drivers for specific dimming information.
Listings: cUL Listed. UL Listed for WET Location. UL Listed for direct contact with insulation. Airtight per ASTM
E-283. ENERGY STAR® Qualitified. California Title 24 (JA8-2016-E)
