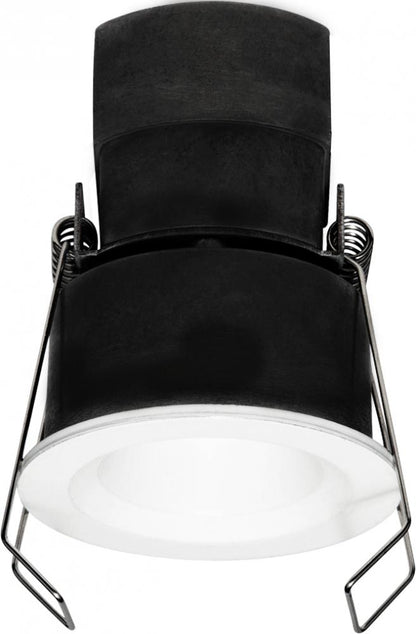

ELCO Lighting E111F30W
E111F30W Product Description
Oak Cove Light
FEATURES:
IC Airtight for use with direct contact with insulationHeight allows for use in 2 X 4 construction
Daisy chain up to 10 fixtures with E1LDRV60
Life Span 50,000 Hours L70
Non-dimmable
38° fixed beam angle only
ETL Listed
SPECIFICATIONS :
Wattage 3WLumens 300 lm
Voltage 12V
Color Temp. 3000K
Lamp Type LED
Beam Angle 38°
Optics
PC Lens for even lumen distribution.
Construction
Diecast construction for lasting quality and greater heat dissipation. High quality powder coat
finish preventing rust and paint cracking.
Installation
Can be installed on E1LF1 New Construction frame. Remodel requires no frame. Hole cutout size:
2" (50 mm)
LED Technology
Lumen Maintenance of 50,000 hours L70 based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum body as heat sink.
Electrical/Transformer
Requires transformer. Can be daisy chained up to 10 fixtures with E1LDRV60.
Warranty
ELCO Products are built to last with a 5-year Limited warranty.
