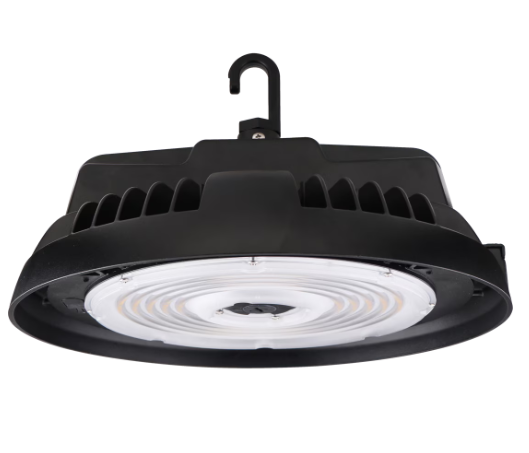

Eiko HBX2-1004-1-B120

HBX2-1004-1-B120 Product Description

The HBX2-Series is the most versatile Monopoint High Bay offered in the North American market. Built with lightweight aluminum die cast construction it is a lightweight fixture that can be configured for almost any application.With multiple configurable options including mounting methods, reflectors, wire guards, frosted lens, side or center mount 12V remote controlled motion sensors and surge protectors the HBX2 is the only high bay you’ll need to consider to meet the demands of every project.

Specifications:

Voltage    120-277VAC
Lumens (lm)    15,857 lm
Wattage    100W
Efficacy (lm/W)    155 lm/W
CCT    4000
CRI    80+
Dimming    0-10
Nominal Size    13 Inch
Replacement For/Equivalent    Up to 400W HID
DLC Version    DLC Premium
T20 Status    Exempt
IP Rating    IP65
Wet/Damp/Dry Location    Wet
IK Rating    10
RoHS Compliant    Yes
FCC Compliant    Yes
Vibration Rating    3G
UL    Yes
Dimensions (L x W x H)    D: Ø13" (Ø330 mm), H: 7 3/4" (196 mm)
Housing Color    Matte Black
Lens Material    Polycarbonate (PC)
Operating Temp Range (°F/°C)    -40F to 131F (-40C to 55C)
Driver Surge Protection (kV)    L/N-PE: 10kV, L-N: 10kV
Additional Surge Protection (kV)    10kV included, 20kV option
Auxiliary Output    12V, 200mA
Warranty    5 Years
Brand Eiko

About Eiko:

EiKO, founded on entrepreneurial spirit over 46 years ago, has grown from a specialty lamp company to a leading provider of traditional lamps, LED lamps, fixtures, wireless sensors, and controls, serving industrial and commercial customers across the US and Canada. Agile and responsive to the ever-changing lighting industry, EiKO remains committed to delivering innovative solutions and exceptional customer experiences. With a strong focus on putting customers first, EiKO continues to evolve, expand its product offerings, and maintain its reputation for excellence, ensuring continued growth and success in an increasingly dynamic market.
