Eiko AAL1-PS100-50T5-U-PC6

AAL1-PS100-50T5-U-PC6 Product Description

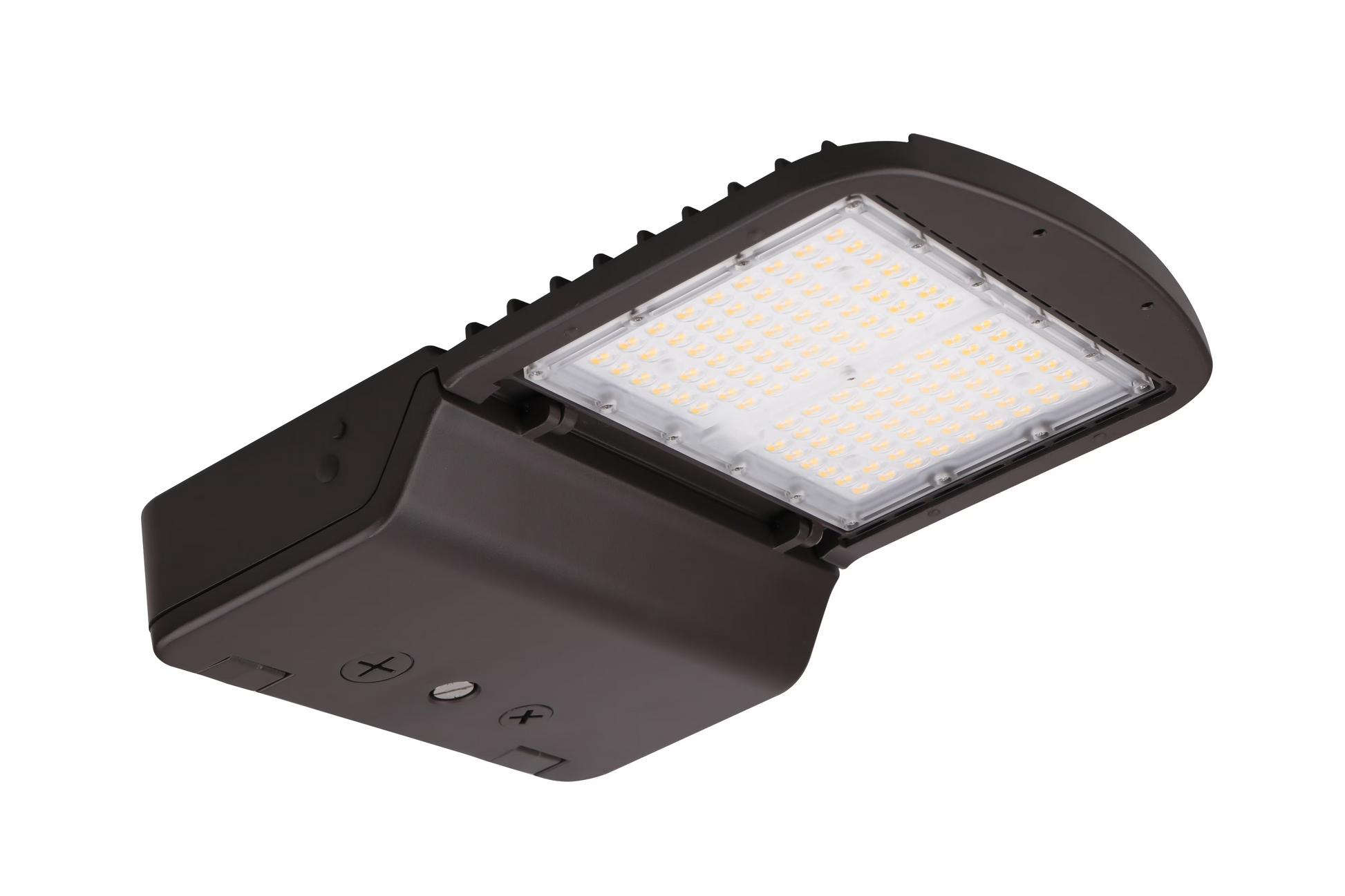

The AAL1 LED Area Light provides efficient illumination with selectable wattages (100W, 80W, or 60W) and lumens from 8,400 to 14,000. It features a 5000K color temperature, 80+ CRI, and 140 lm/W efficacy, making it a suitable replacement for up to 320W HID fixtures. With an IP65 rating, bronze housing, and polycarbonate lens, it's designed for wet locations and operates in extreme temperatures from -40°F to 122°F. The light includes 10kV surge protection, 0-10V dimming, and is DLC Premium, UL, FCC, and RoHS compliant.

Specifications:

Brand: Eiko
SKU: AAL1-PS100-50T5-U-PC6
UPC: 31293154552
Voltage: 120-277VAC
Lumens: 14,000 / 11,200 / 8,400 lm
Wattage: 100W / 80W / 60W
Efficacy: 140 lm/W
CCT: 5000K
CRI: 80+
Dimming: 0-10V
Replacement For/Equivalent: Up to 175-320W HID
DLC Version: DLC Premium
T20 Status: Exempt
IP Rating: IP65
Location Rating: Wet
IK Rating: 8
RoHS Compliant: Yes
FCC Compliant: Yes
UL Listed: Yes
Dimensions: L: 13 3/4" (349 mm), W: 10 5/16" (262 mm), H: 2 5/16" (74 mm)
Housing Color: Bronze
Lens Material: Polycarbonate (PC)
Operating Temp Range: -40°F to 122°F (-40°C to 50°C)
Driver Surge Protection: L/N-PE: 10kV, L-N: 10kV
Additional Surge Protection: 10kV included, 20kV optional
Auxiliary Output: 12V, 100mA
3-pin Nema Twist-lock Photocell
